John Deere 6603
| | 2002 - 2008 |
| 6003 Series | | Utility tractor |
|
Series map:
6403
6603
102.0hp
112.0hp
| Production |
| Manufacturer | John Deere
|
| Utility tractor |
| Built in Saltillo, Mexico |
| Original price was $34,870 in 2004 with 2WD |
| John Deere 6603 Power |
| Engine | 112 hp
83.5 kW
|
| PTO (claimed) | 95 hp
70.8 kW
|
| Mechanical |
| Two- or four-wheel drive |
| Final drives | inboard planetary
|
| Differential lock | mechanical rear
|
| Power steering |
| Mechanical wet disc brakes |
| Two-post folding ROPS. ComfortVantage Cab optional. |
| Hydraulics |
| Type | open center
|
| Pressure | 2750 psi
189.6 bar
|
| Rear valves | 2 or 3
|
| Pump flow | 15 gpm
56.8 lpm
|
| Total flow | 15 gpm
56.8 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Control | mechanical lower-link draft sensing
|
| Rear lift (at ends) | 5,292 lbs
2400 kg
|
| Rear lift (at 24"/610mm) | 4828 lbs
2189 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | dry disc
|
| Rear PTO Type | 540/1000
|
| Engine RPM | 540@2100
|
| | 1000@2100
|

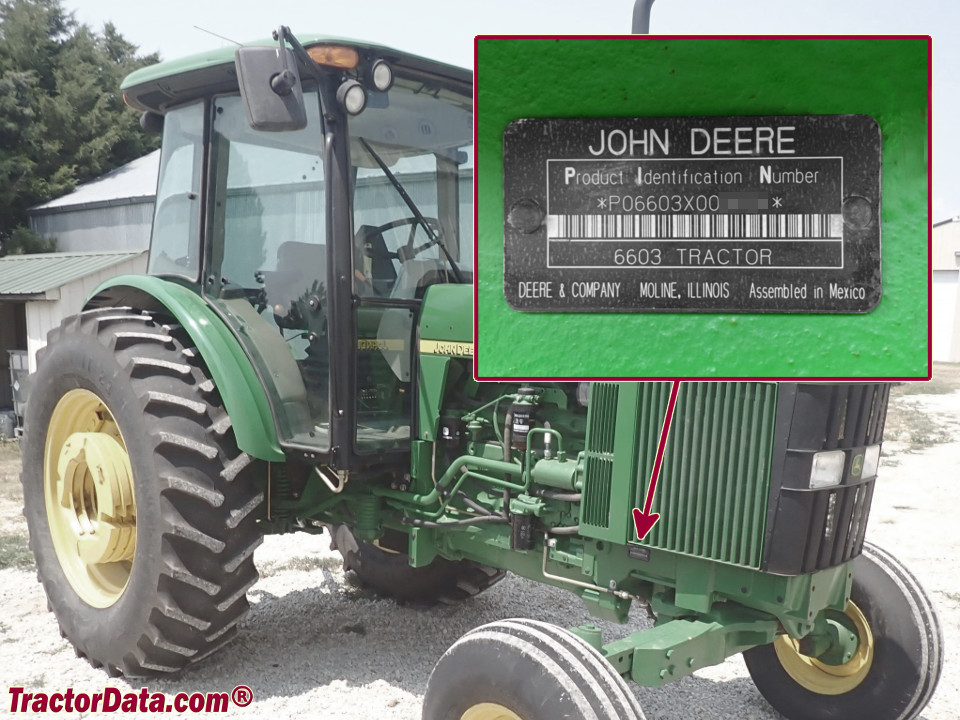

| 6603 Serial Number Location |
 |
| Serial number plate on the right side of the tractor frame, above the front axle. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 65
|
| Battery CCA | 925
|
| Battery volts | 12
|
| References |
 |
| 6003 Series published in 2005, by John Deere |
| Operator's Manual 6403 and 6603 Tractors (OMRE226033) published in 2009 |
