John Deere 5325
|
|
| Production | |
| Manufacturer | John Deere |
| Utility tractor | |
| Built in Augusta, Georgia, USA | |
| John Deere 5325 Engine | |
| John Deere 3.1L 5-cyl diesel | |
 Engine details ... |
| John Deere 5325 Transmissions | |
| 9-speed partially synchronized | |
| 12-speed power shuttle | |
| 24-speed two-speed power shift | |
 Transmission details ... |
| John Deere 5325 Power | |
| Engine (gross) | 67 hp 50.0 kW |
| PTO (claimed) | 55 hp 41.0 kW |
| PTO (tested) | 57.27 hp 42.7 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Final drives | inboard planetary |
| Differential lock | mechanical rear |
| Power steering | |
| Differential hydraulic wet disc brakes | |
| Open operator station with two-post folding ROPS. Optional isolated flat-platform (IOOS). Cab available with air-conditioning. | |

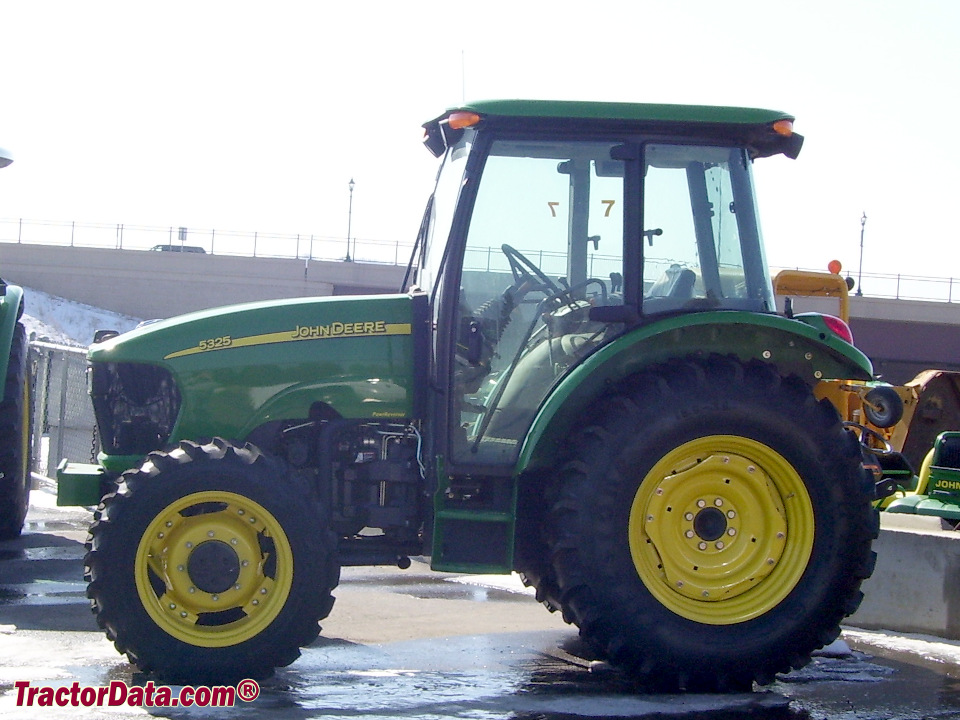

| Photos | |
 | |
 John Deere 5325 photos... | |
| Capacity | |
| Fuel | 25 gal (straddle) 94.6 L |
| 33.5 gal (IOOS/cab) 126.8 L | |
| Hydraulic system | 10.3 gal (9-speed) 39.0 L |
| 11.5 gal (12-speed) 43.5 L | |
| Front hubs | 0.74 qts*Each 0.7 L |
| Front diff. | 4.8 qts 4.5 L |
| Hydraulics | |
| Type | open center |
| Capacity | 10.3 gal (9-speed) 39.0 L |
| 11.5 gal (12-speed) 43.5 L | |
| Pressure | 2828 psi 195.0 bar |
| Rear valves | 1 to 3 |
| Mid valves | 0, 2 or 3 |
| Pump flow | 13.5 gpm 51.1 lpm |
| Total flow | 19.4 gpm 73.4 lpm |
| Steering flow | 5.9 gpm 22.3 lpm |
| Steering press. | 1957 psi 134.9 bar |
| Tractor hitch | |
| Rear Type | II/I |
| Control | top-link draft sensing |
| Rear lift (at 24"/610mm) | 3374 lbs 1530 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Clutch | dry disc |
| electro-hydraulic wet disc (24-speed) | |
| Rear PTO Type | 540 |
| 540/540E OptOptional | |
| 540/1000 *Optional field conversion kit. | |
| Engine RPM | 540@2400 |
| 540E@1700 | |
| Dimensions & Tires | |
| Wheelbase | 85.7 inches 217 cm |
| Weight | 5350 to 6760 pounds |
| Front tire | 7.50-16 |
| 2WD Rear tire | 14.9-28 |
 Full dimensions and tires ... | |
| John Deere 5325 attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |

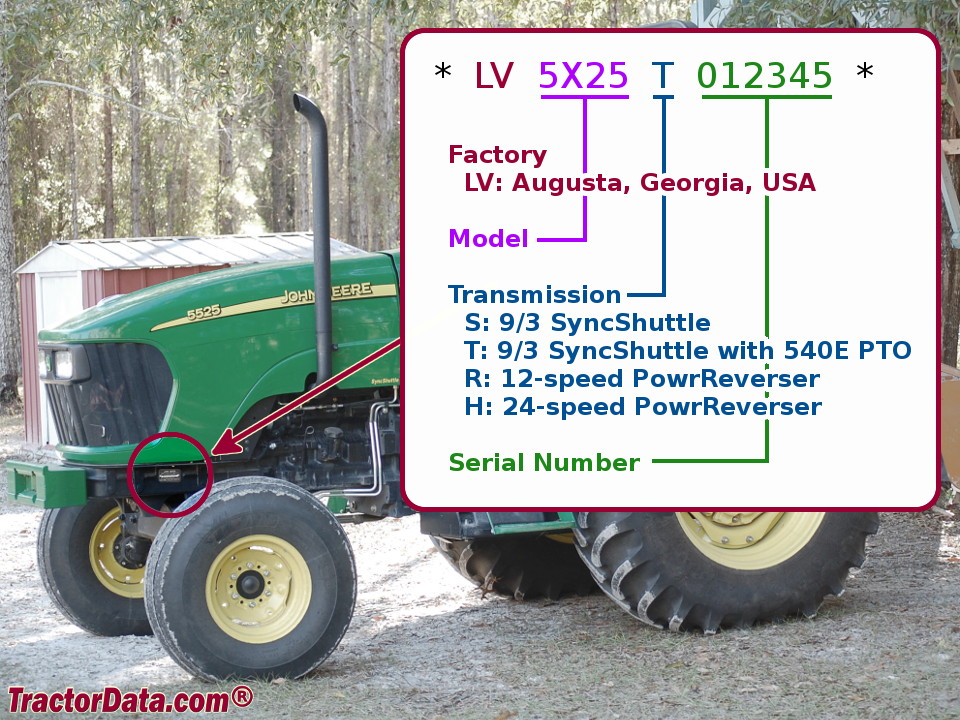

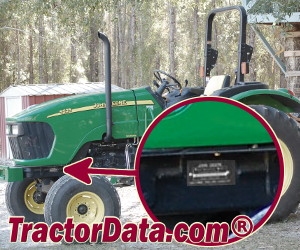

| 5325 Serial Number Location | |
 | |
| Left side of tractor frame above the front axle. |
| 5325 Serial Numbers | |
| 2005 | 130001 |
| 2006 | 230001 |
| 2007 | 338001 |
| 2008 | 430001 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| ROPS Charging amps | 70 |
| Cab Charging amps | 90 |
| Battery CCA | 950 |
| Battery volts | 12 |
| Battery Group | BCI 31 |
| References | |
 | |
| Commercial & Consumer Equipment Purchasing Guide published in 2007, by John Deere | |
| 5000 Series Value Selling Guide published in 2005, by John Deere | |
| 5025 Series Tractors published in 2005, by John Deere | |
| 5025 Series Tractors published in 2007, by John Deere | |
| Operator's Guide 5225, 5325, 5425 and 5625 Tractors (OMRE260579) published in 2007 | |
| Commercial & Consumer Equipment Purchase Guide published in 2005, by John Deere |
