Tractors > John Deere > 5325

John Deere 5325 Transmission



John Deere 5325 tractor photo
2005 - 2008
5025 Series
Utility tractor
Series map:
5225
5325
5425
56.0hp
67.0hp
81.0hp
Transmission options
9-speed partially synchronized
12-speed power shuttle
24-speed two-speed power shift
Transmission
TransmissionJohn Deere SyncShuttle
Typepartially synchronized
Gears9 forward and 3 reverse
Clutchdry disc
Oil capacity41.2 qts
39.0 L
Oil type
122o↔-10oF [50o↔-23oC]   : Hy-Gard
86o↔-40oF [30o↔-40oC]   : Low-Viscosity Hy-Gard
Three gears (1-3) plus reverse in three ranges (A-C). Gears may be shifted on the move using the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds
With 16.9-30 rear tires.
5325 SyncShuttle partially synchronized speeds
Transmission
TransmissionJohn Deere PowrReverser
Typepower shuttle
Gears12 forward and reverse
Clutchwet disc
Oil capacity46 qts
43.5 L
Oil type
122o↔-10oF [50o↔-23oC]   : Hy-Gard
86o↔-40oF [30o↔-40oC]   : Low-Viscosity Hy-Gard
Four gears (1-4) in three ranges (A-C) with reverser lever. Direction may be changed without using the clutch. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.
Speeds
With 16.9-30 rear tires.
5325 PowrReverser power shuttle speeds
Transmission
TransmissionJohn Deere PowrReverser Hi/Lo
Typetwo-speed power shift
Gears24 forward and reverse
Clutchwet disc
Adds a push-button high-low power shift to the PowrReverser transmission. Gear shifts are synchronized using the clutch. Tractor must be stopped to shift ranges.
Speeds
With 16.90-30 rear tires. Reverse speeds are 10% faster than forward speeds.

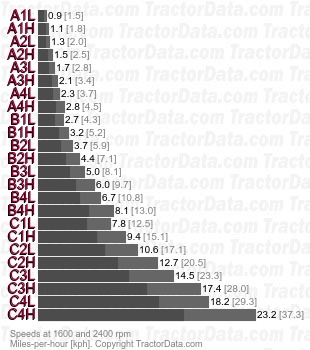

5325 PowrReverser Hi/Lo two-speed power shift speeds
