Tractors > John Deere > 5520

John Deere 5520 Engine



John Deere 5520 tractor photo
2001 - 2004
5000 Twenty Series
Utility tractor
Series map:
5420
5520
81.0hp
89.0hp
Engine Detail
John Deere 4045D
turbocharged diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power89 hp
66.4 kW
Compression17.0:1
Rated RPM2400
Idle RPM825-2625
Operating RPM1600-2400
Torque227.2 lb-ft
308.1 Nm
Torque RPM1500
Firing order1-3-4-2
Starter volts12
Coolant capacity11.4 qts
10.8 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

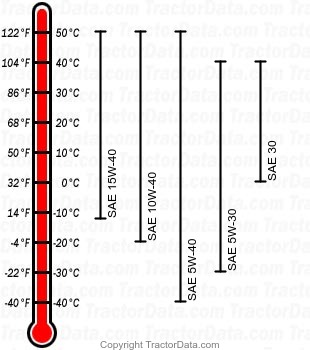

5520 diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h
