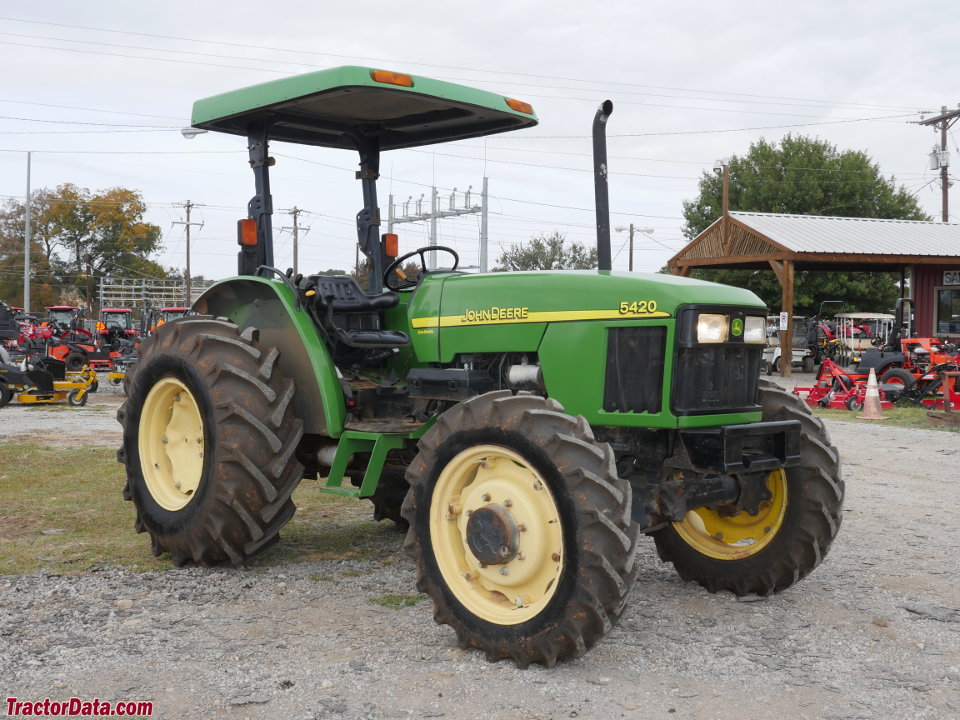

John Deere 5420
|
|
| Production | |
| Manufacturer | John Deere |
| Utility tractor | |
| Built in Augusta, Georgia, USA | |
| Original price | $28,000 (2004) |
| The John Deere model 5420 is nearly identical to the 5410. | |
| Variants | |
| 5420N | narrow chassis |
| John Deere 5420 Engine | |
| John Deere 4.5L 4-cyl diesel | |
 Engine details ... |
| John Deere 5420 Transmissions | |
| 9-speed collar shift | |
| 9-speed partially synchronized | |
| 12-speed power shuttle | |
 Transmission details ... |
| John Deere 5420 Power | |
| Engine | 81 hp 60.4 kW |
| PTO (claimed) | 65 hp 48.5 kW |
| PTO (tested) | 66.49 hp 49.6 kW |
 Performance test details ... | |
| Mechanical | |
| Two- or four-wheel drive | |
| Steering | hydrostatic power |
| Hydraulic wet disc brakes | |
| ROPS with straddle-mount platform. Optional ROPS with isolated platform (IOOS). Optional cab. | |
| Photos | |
 | |
 John Deere 5420 photos... | |
| Capacity | |
| Fuel | 18 gal (ROPS early) 68.1 L |
| 20 gal (ROPS late) 75.7 L | |
| 27 gal (IOOS/cab small) 102.2 L | |
| 29.5 gal (IOOS/cab large) 111.7 L | |
| Hydraulic system | 10 gal 37.9 L |
| 11.5 gal (PowrReverser) 43.5 L | |
| Front axle | 6.6 qts 6.2 L |
| Front hubs | 0.74 qts (each) 0.7 L |
| Front diff. | 5.2 qts 4.9 L |
| Hydraulics | |
| Type | open center |
| Capacity | 10 gal 37.9 L |
| 11.5 gal (PowrReverser) 43.5 L | |
| Pressure | 2800 psi 193.1 bar |
| Valves | 2 to 3 |
| Pump flow | 15.9 gpm 60.2 lpm |
| Steering flow | 6.6 gpm 25.0 lpm |
| Steering press. | 1900 psi 131.0 bar |
| Tractor hitch | |
| Rear Type | II/I |
| Rear lift (at 24"/610mm) | 3,374 lbs 1530 kg |
| Power Take-off (PTO) | |
| Rear PTO | independent |
| Rear PTO Type | 540 |
| 540/540E | |
| Engine RPM | 540@2400 |
| 540E@1700 | |
| Dimensions & Tires | |
| Wheelbase | 85.7 inches (ROPS) 217 cm |
| 85 inches (2WD cab) 215 cm | |
| 86 inches (4WD cab) 218 cm | |
| Weight | 4285 to 6740 pounds |
| Front tire | 7.50-16 |
| Rear tire | 16.9-30 |
 Full dimensions and tires ... | |
| John Deere 5420 attachments | |
| front-end loader | |
| backhoe | |
 Attachment details ... |

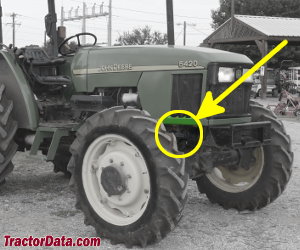

| 5420 Serial Number Location | |
 | |

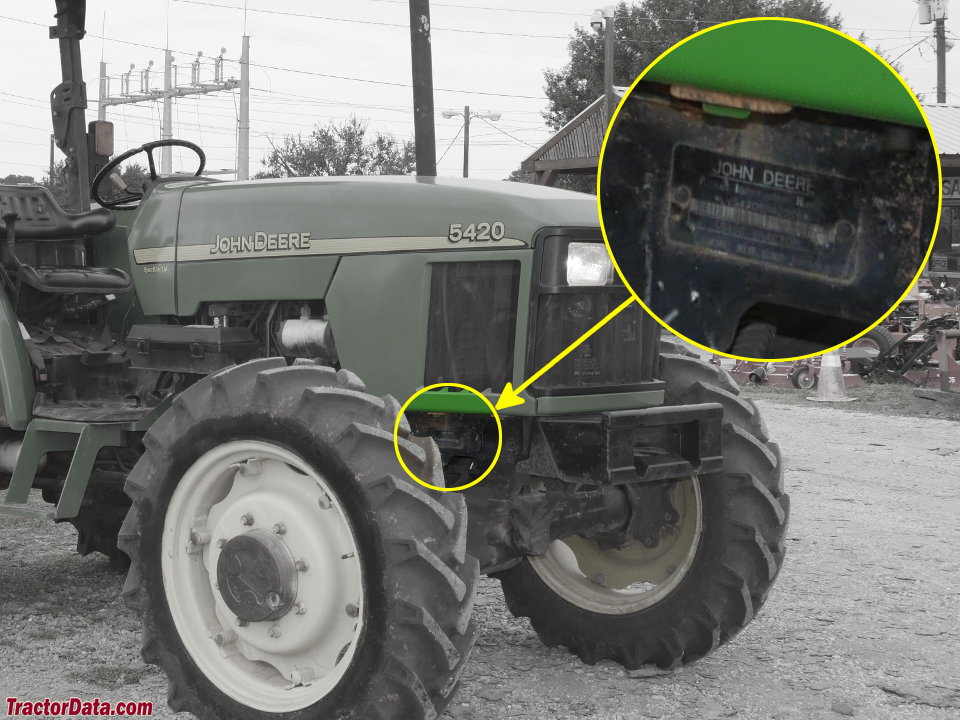

| The tractor's serial number plate is on the right side of the frame, above the front axle. |
| 5420 Serial Numbers | |
| 2002 | 240001 |
| 2003 | 340001 |
| 2004 | 440001 |
FAQ: How to read a serial number table. | |
| Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 65 |
| Battery CCA | 700 (early) |
| 950 (late) | |
| Battery volts | 12 |
| Battery Group | 31 |
| References | |
 | |
| Grounds Care Equipment Purchasing Guide published in 2001, by John Deere | |
| 5020 Series Tractors published in 2004, by John Deere |
