John Deere 5420 Engine


John Deere 5420 tractor photo
2001 - 2004
5000 Twenty Series
Utility tractor
Series map:
5320
5420
5520
64.0hp
81.0hp
89.0hp
Engine Detail
John Deere 4045D
diesel
4-cylinder
liquid-cooled
Displacement276 ci
4.5 L
Bore/Stroke4.19x5.00 inches
106 x 127 mm
Power81 hp
60.4 kW
Fuel use4.21 gal/hour
15.9 l/hour
Compression17.6:1
Rated RPM2400
Idle RPM825-2625
Operating RPM1600-2400
Torque179.2 lb-ft
243.0 Nm
Torque RPM1400
Firing order1-3-4-2
Starter volts12
Coolant capacity11.4 qts
10.8 L
Intake valve clearance0.014 inches
0.356 mm
Exhaust valve clearance0.018 inches
0.457 mm
Engine Oil

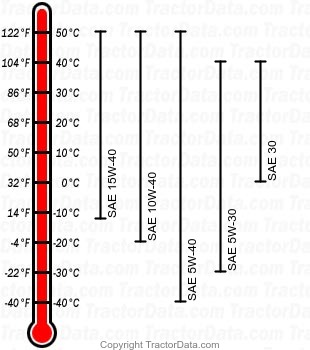

5420 diesel engine oil chart
Oil capacity9 qts
8.5 L
Oil change100 h
