John Deere 5220 Transmission


John Deere 5220 tractor photo
2001 - 2004
5000 Twenty Series
Utility tractor
Series map:
5220
5320
53.0hp
64.0hp
Transmission options
9-speed collar shift
9-speed partially synchronized
12-speed power shuttle
Transmission
ManufacturerJohn Deere
Typecollar shift
Gears9 forward and 3 reverse
Clutchdry disc
Oil capacity40 qts
37.9 L
Three gears (1-3) plus reverse (R) in three ranges (A-C). Tractor must be stopped, and clutch used, to shift gears or range.
Speeds
With 16.9-30 R1 rear tires.
5220  collar shift speeds
Transmission
TransmissionJohn Deere SyncShuttle
Typepartially synchronized
Gears9 forward and 3 reverse
Clutchdry disc
Oil capacity40 qts
37.9 L
Three gears (1-3) plus reverse (R) in three ranges (A-C). Gear and direction shifts are synchronized enabling shifting on the move with the clutch. Tractor must be stopped, and clutch used, to shift ranges.
Speeds
With 16.9-30 R1 rear tires.

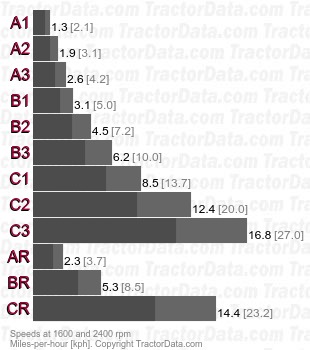

5220 SyncShuttle partially synchronized speeds
Transmission
TransmissionJohn Deere PowrReverser
Typepower shuttle
Gears12 forward and reverse
Clutchwet disc
Oil capacity46 qts
43.5 L
Four gears (1-4) in three ranges (A-C) with left-hand directional lever. Forward-reverse directional shifts may be done while moving, without the clutch. Gear shifts are synchronized. Tractor must be stopped to shift ranges.
Speeds
With 16.9-30 R1 rear tires.

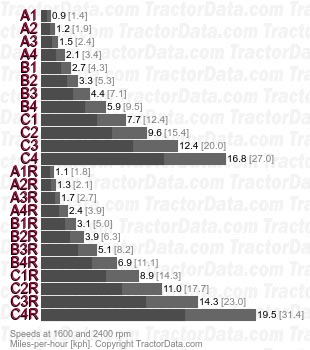

5220 PowrReverser power shuttle speeds
