John Deere 5205 Transmission


John Deere 5205 tractor photo
2000 - 2007
5000 Advantage Series
Utility tractor
Series map:
5105
5205
45.6hp
53.0hp
Transmission
TransmissionSyncReverser
Typepartially synchronized
Gears8 forward and 4 reverse
Clutchdry disc
Oil capacity34 qts
32.2 L
Controlled with foot clutch, plus range speed levers. Four speeds and two forward ranges, plus reverse range. Tractor must be stopped, and clutch used, to shift speed or range. Reverse range to forward A-range may be shifted while tractor tractor is in motion.

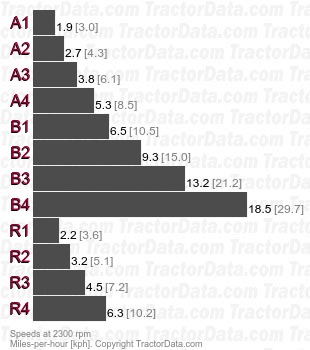

Speeds
With 14.9-28 rear tires.
5205 SyncReverser partially synchronized speeds
