John Deere 5105 Tests


John Deere 5105 tractor photo
2000 - 2007
5000 Advantage Series
Utility tractor
Series map:
5105
5205
45.6hp
53.0hp
Tractor Tests
NTTL 1770: diesel 8-speed 4WD
NTTL 1838: diesel 8-speed 2WD
Nebraska Tractor Test 1770

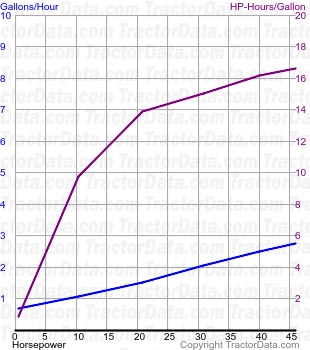

5105 fuel use from test 1770
Nebraska Tractor Test 1770
Diesel 8-speed 4WD
May 2 - 17, 2000
Link: Nebraska Tractor Test 1770 file
PTO performance
Power at rated engine speed40.58 hp
30.3 kW
Fuel use2.4 gal/hour
9.1 l/hour
Power at rated PTO speed40.69 hp
30.3 kW
Fuel use2.4 gal/hour
9.1 l/hour
Nebraska Tractor Test 1838
5105 fuel use from test 1838
Nebraska Tractor Test 1838
Diesel 8-speed 2WD
May 26 - 27, 2004
Link: Nebraska Tractor Test 1838 file
PTO performance
Max power47.56 hp
35.5 kW
Fuel use2.8 gal/hour
10.6 l/hour
Power at rated engine speed45.85 hp
34.2 kW
Fuel use2.8 gal/hour
10.6 l/hour
Power at rated PTO speed47.15 hp
35.2 kW
Fuel use2.8 gal/hour
10.6 l/hour
