John Deere 5203 Transmission


John Deere 5203 tractor photo
2003 - 2008
5003 Series
Utility tractor
Series map:
5103
5203
5303
50.0hp
56.0hp
64.0hp
Transmission options
9-speed
9-speed partially synchronized
Transmission
TransmissionSyncReverser
Gears9 forward and 3 reverse
Clutchdry disc
Oil capacity40 qts
37.9 L
Three speeds (1-3) plus reverse (R) in three ranges (A-C). Tractor must be stopped, and clutch used, before shifting speed or range. Standard on 2WD models.
Speeds
With 14.9x28 rear tires.
5203 SyncReverser  speeds
Transmission
TransmissionSyncShuttle
Typepartially synchronized
Gears9 forward and 3 reverse
Clutchdry disc
Oil capacity40 qts
37.9 L
The SyncShuttle (also identified as Top Shaft Synchronizer or TSS) is available on the 4WD models. Three speeds (1-3) plus reverse (R) in three ranges (A-C). Shifting speeds may be done while in motion, using the clutch. The tractor must be stopped to shift ranges.

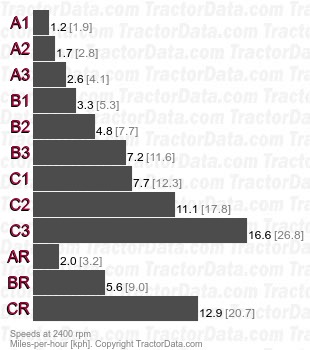

Speeds
With 14.9x28 rear tires.
5203 SyncShuttle partially synchronized speeds
