Tractors > John Deere > 4520

John Deere 4520 Engine



John Deere 4520 tractor photo
2005 - 2014
Model year
4000 Twenty Compact Series
Compact Utility tractor
Series map:
4320
4520
4720
48.1hp
53.1hp
58.1hp
Engine Detail
John Deere 4042T
turbocharged diesel
4-cylinder
liquid-cooled
Displacement148.9 ci
2.4 L
Bore/Stroke3.386x4.134 inches
86 x 105 mm
Power53.1 hp
39.6 kW
Air cleanerpaper and felt elements
Compression20.5:1
Rated RPM2400
Torque141 lb-ft
191.2 Nm
Torque RPM1440
Starter volts12
Starter power2.9 hp
2.2 kW
Coolant capacity6.4 qts
6.1 L
 8.8 qts (with cab)
8.3 L
Engine Oil

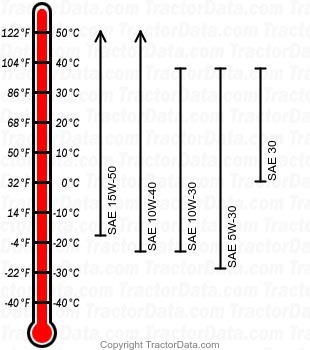

4520 diesel engine oil chart
Oil capacity7.9 qts
7.5 L
