John Deere 4210 Transmission


John Deere 4210 tractor photo
2002 - 2004
4000 Ten Compact Series
Compact Utility tractor
Series map:
4115
4210
4310
24.0hp
27.0hp
31.2hp
Transmission options
9-speed partially synchronized
hydrostatic
Transmission
TransmissionSyncShift
Typepartially synchronized
Gears9 forward and 3 reverse
Oil capacity25.2 qts
23.8 L
Three gears (1-3) plus reverse in three ranges (A-C). Gears can be shifted on the move using the clutch. Tractor must be stopped to shift ranges.
Speeds
With 12.4-16 rear tires.
4210 SyncShift partially synchronized speeds
Transmission
TransmissioneHydro
Typehydrostatic
Gearsinfinite forward and reverse (3-range)
Oil capacity27.2 qts
25.7 L
Three-range hydrostatic transmission with foot pedals and cruise control. Tractor must be stopped to shift ranges. Automotive cruise control option allows set speed to be adjusted with rocker switch. SpeedMatch option allows a maximum speed to be set and full pedal travel used to achive that speed. LoadMatch option prevents the tractor from stalling during heavy loads. The MotionMatch option enables the acceleration rate to be set to fast or slow.
Speeds
With 12.4-16 rear tires.

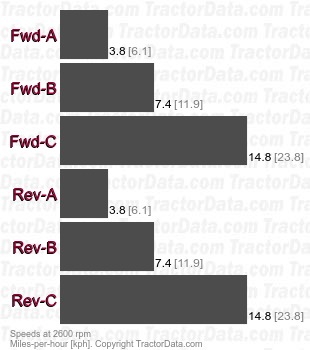

4210 eHydro hydrostatic speeds
Shift Pattern
John Deere 4210 transmission controls
