John Deere 4115 Transmission


John Deere 4115 tractor photo
2003 - 2004
4000 Ten Compact Series
Compact Utility tractor
Yanmar built
Series map:
4110
4115
4210
20.0hp
24.0hp
27.0hp
Transmission
Typehydrostatic
Gearsinfinite forward and reverse (2-range)
Oil capacity15.6 qts
14.8 L
Oil type
122o↔0oF [50o↔-17oC]   : HY-GARD
80o↔-40oF [26o↔-40oC]   : Low-viscosity HY-GARD
The John Deere 4115 uses a two-range hydrostatic transmission operated with forward and reverse foot pedals. Left-hand shifter selects range. Tractor must be stopped to switch ranges.

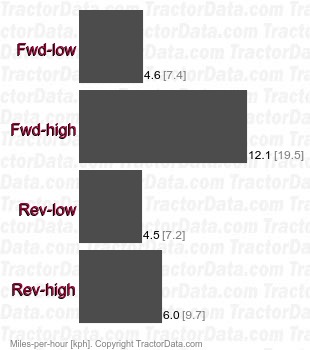

Speeds
With 35x12.00-16.5 rear tires.
4115  hydrostatic speeds
