Tractors > John Deere > 4440

John Deere 4440



John Deere 4440 tractor photo
1977 - 1984
4040 Series
Row-Crop tractor
Series map:
4240S
4440
4640
98.4kw
121.0kw
138.0kw
Production
ManufacturerJohn Deere
Row-Crop tractor
Built in Mannheim, Baden-Württemberg, Germany
John Deere 4440 Engine
John Deere 7.6L 6-cyl diesel
Fuel tank65 gal
246.0 L
Engine details ...
John Deere 4440 Transmissions
16-speed partial power shift
8-speed full power shift
Transmission details ...
John Deere 4440 Power
Engine (gross)162.3 hp
121.0 kW
Engine (net)152.9 hp
114.0 kW
PTO (claimed)134.1 hp
100.0 kW
Mechanical
Drive4x2 2WD
 4x4 HFWD
 4x4 MFWD 4WD
Final drivesplanetary
Differential lockhydro-mechanical
Power steering
Hydraulic wet disc brakes
Cab standard.
Photos
No photos of the John Deere 4440 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Hydraulics
Typeclosed center
Pressure2250 psi
155.1 bar
Pump flow23.4 gpm
88.6 lpm
Tractor hitch
Rear TypeII
Controlposition and draft control
Power Take-off (PTO)
Rear PTOindependent
Clutchhydraulic wet disc
Rear PTO Type540/1000 (1.375)
Engine RPM540@2200
 1000@2200
Dimensions & Tires
Wheelbase106.7 inches
271 cm
Weight12846 lbs
5826 kg
Front tire11.00-16
Rear tire18.4-38
Full dimensions and tires ...

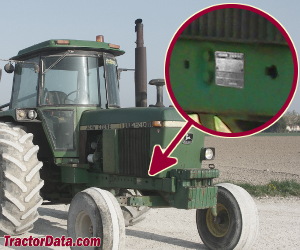

4440 Serial Number Location
John Deere 4440 serial number location
Serial number plate on the right side of the tractor frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps55
Batteries2
Battery volts12
Battery AH88
References

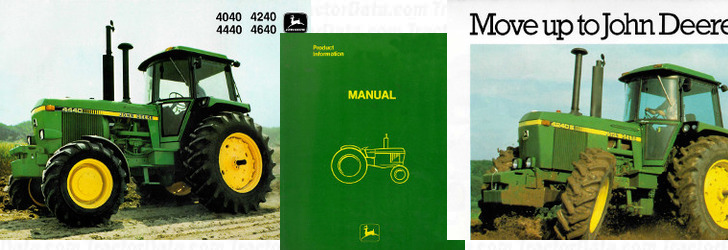

4440 references literature
4040 4240 4440 4640 published in 1980, by John Deere
Product Information Manual published in 1977, by John Deere
Move up to John Deere... published in 1981
