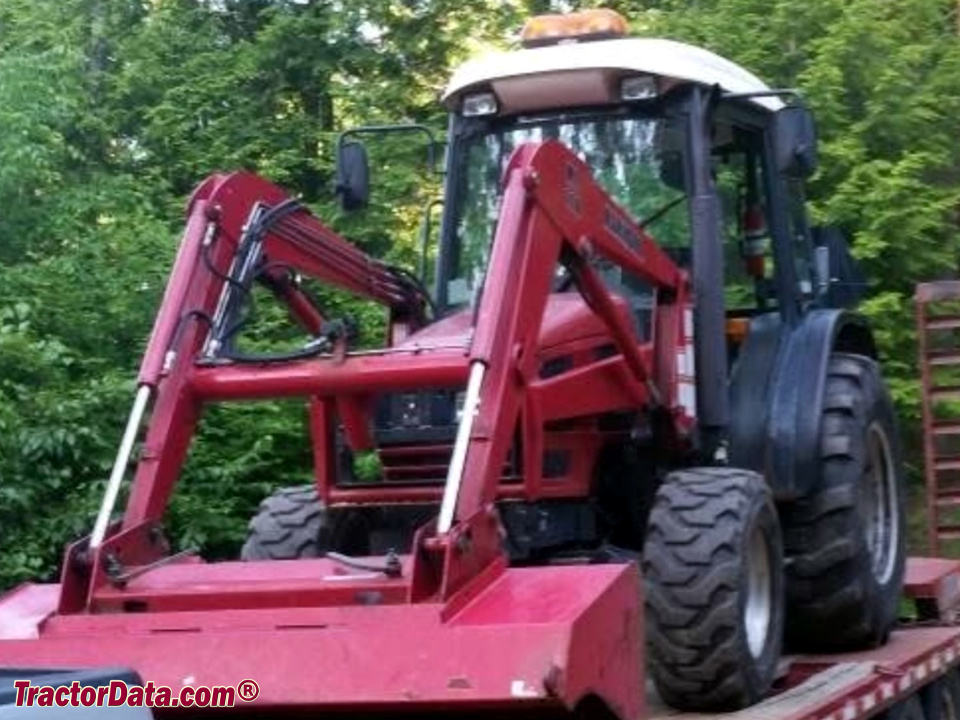

Mahindra 4510
| | 2004 - 2008 |
| 10 Series | | Compact Utility tractor | | TYM built |
|
Series map:
4110
4510
41.0hp
45.0hp
| Production |
| Distributor | Mahindra
|
| Manufacturer | TYM
|
| Compact Utility tractor |
| Mahindra 4510 Power |
| Engine | 45 hp
33.6 kW
|
| PTO (claimed) | 36 hp
26.8 kW
|
| Mechanical |
| Four-wheel drive |
| Differential lock | standard
|
| Steering | hydrostatic power
|
| Wet disc brakes |
| Cab standard with heat and air-conditioning. |
| Photos |
| No photos of the Mahindra 4510 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | open center
|
| Valves | 3
|
| Pump flow | 9.6 gpm
36.3 lpm
|
| Steering flow | 4.3 gpm
16.3 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position and draft control
|
| Rear lift | 2867 lbs
1300 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Clutch | electro-hydraulic
|
| Rear PTO Type | 540
|
| Engine RPM | 540@2391
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 50
|
| Charging volts | 12
|
| Battery volts | 12
|
| Battery AH | 110
|
