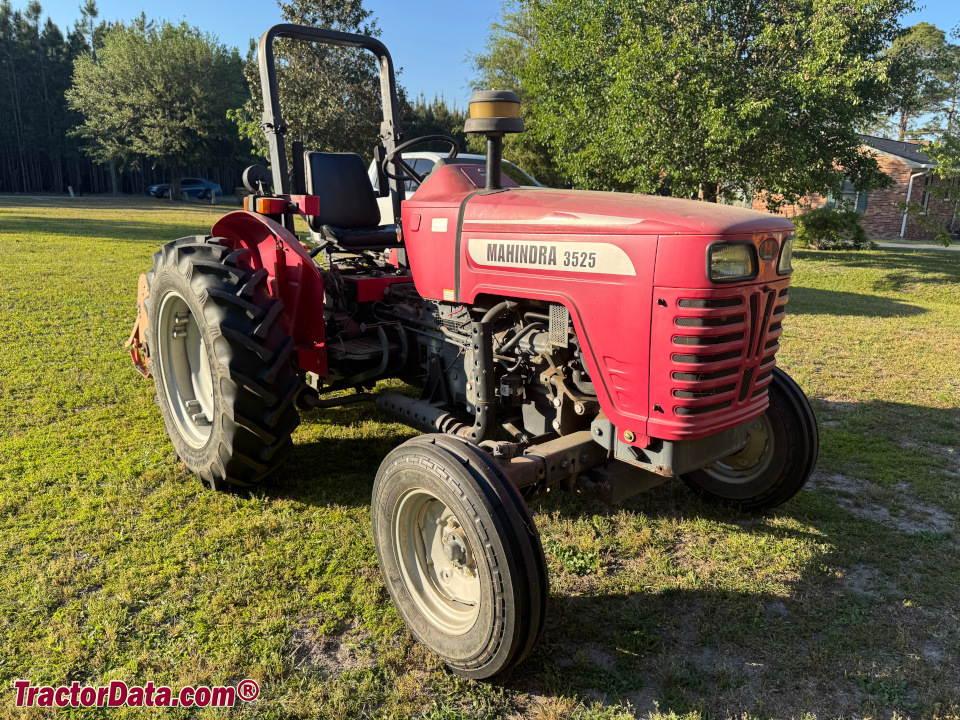

Mahindra 3525
| | 2004 - 2008 |
| 25 Series | | Utility tractor |
|
Series map:
3325
3525
3825
35.0hp
35.0hp
41.0hp
| Production |
| Manufacturer | Mahindra
|
| Utility tractor |
| Built in Maharashtra, India |
| Original price was $12,415 in 2008 |
| Mahindra 3525 Power |
| Engine | 35 hp
26.1 kW
|
| PTO (claimed) | 27 hp
20.1 kW
|
| Mechanical |
| Two-wheel drive |
| Steering | hydrostatic power
|
| Dry disc brakes |
| Two-post foldable ROPS. |
| Photos |
| No photos of the Mahindra 3525 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer. |
| Hydraulics |
| Type | open center
|
| Pump flow | 8.3 gpm
31.4 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position and draft control
|
| Rear lift | 3525 lbs
1598 kg
|
| Power Take-off (PTO) |
| Rear PTO | live
|
| Rear PTO Type | 540
|
| Engine RPM | 540@2058
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 36
|
| Charging volts | 12
|
| Battery volts | 12
|
| Battery AH | 96
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 25, 2013 |
