Mahindra 3325
| | 2004 - 2008 |
| 25 Series | | Utility tractor |
|
Series map:
2525
3325
3525
25.0hp
35.0hp
35.0hp
| Production |
| Manufacturer | Mahindra
|
| Utility tractor |
| Built in Maharashtra, India |
| Original price was $10,829 in 2008 |
| Mahindra 3325 Power |
| Engine | 35 hp
26.1 kW
|
| PTO (claimed) | 30 hp
22.4 kW
|
| Mechanical |
| Two-wheel drive |
| Steering | manual recirculating ball
|
| Dry disc brakes |
| Two-post folding ROPS. |
| Hydraulics |
| Type | open center
|
| Pump flow | 8.3 gpm
31.4 lpm
|
| Tractor hitch |
| Rear Type | II/I
|
| Control | position and draft control
|
| Rear lift | 3525 lbs
1598 kg
|
| Power Take-off (PTO) |
| Rear PTO | transmission
|
| Clutch | over-running
|
| Rear PTO Type | 540
|
| Engine RPM | 540@1980
|

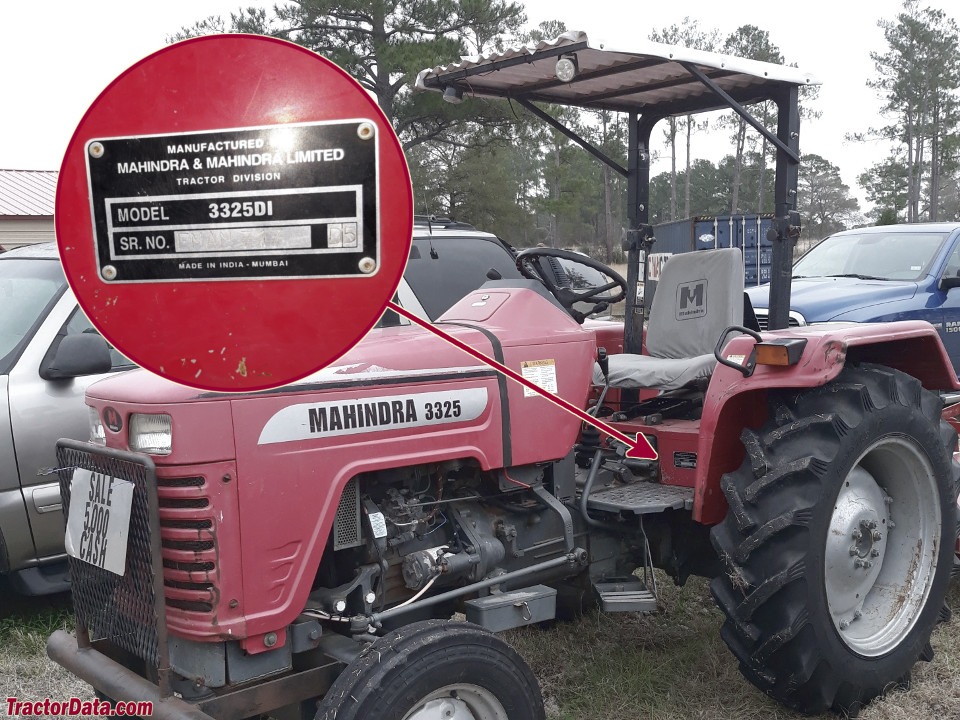

| 3325 Serial Number Location |
 |
| Serial number plate on the left side of the operator's platform, above the left floor board. |
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 36
|
| Charging volts | 12
|
| Battery volts | 12
|
| Battery AH | 96
|
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 22, 2021 |
