Mahindra 3510



Mahindra 3510 tractor photo
2002 - 2009
10 Series
Compact Utility tractor
TYM built
Series map:
2810
3510
4110
28.0hp
34.0hp
41.0hp
Production
DistributorMahindra
ManufacturerTYM
Compact Utility tractor
Built in South Korea
Mahindra 3510 Engine
Mahindra 1.6L 3-cyl diesel
Engine details ...
Mahindra 3510 Transmissions
12-speed synchomesh shuttle
hydrostatic
Transmission details ...
Mahindra 3510 Power
Engine34 hp
25.4 kW
PTO (claimed)28.7 hp (gear)
21.4 kW
 28 hp (hydro)
20.9 kW
Mechanical
Four-wheel drive
Steeringhydrostatic power
Wet disc brakes
Photos
Mahindra 3810 with ML112 front-end loader and 509 backhoe, right side.
Mahindra 3510 photos...
Hydraulics
Typeopen center
Valves1
Gear Pump flow7.87 gpm
29.8 lpm
Hydro Pump flow6.4 gpm
24.2 lpm
Gear Steering flow3.57 gpm
13.5 lpm
Hydro Steering flow4.60 gpm
17.4 lpm
Tractor hitch
Rear TypeI
Controlposition control
Gear Rear lift2865 lbs
1299 kg
Hydro Rear lift2080 lbs
943 kg
Power Take-off (PTO)
Rear PTOindependent
Clutchelectro-hydraulic
Rear PTO Type540/1000 (gear)
 540 (hydro)
Engine RPM540@2524 (gear)
 1000@2866 (gear)
 540@2775 (hydro)
Mid PTOindependent (hydro only)
Clutchelectro-hydraulic
Mid PTO Type2000
Engine RPM2000@2650
Dimensions & Tires
Weight3064 to 3881 pounds
Full dimensions and tires ...
Mahindra 3510 attachments
front-end loader
Attachment details ...

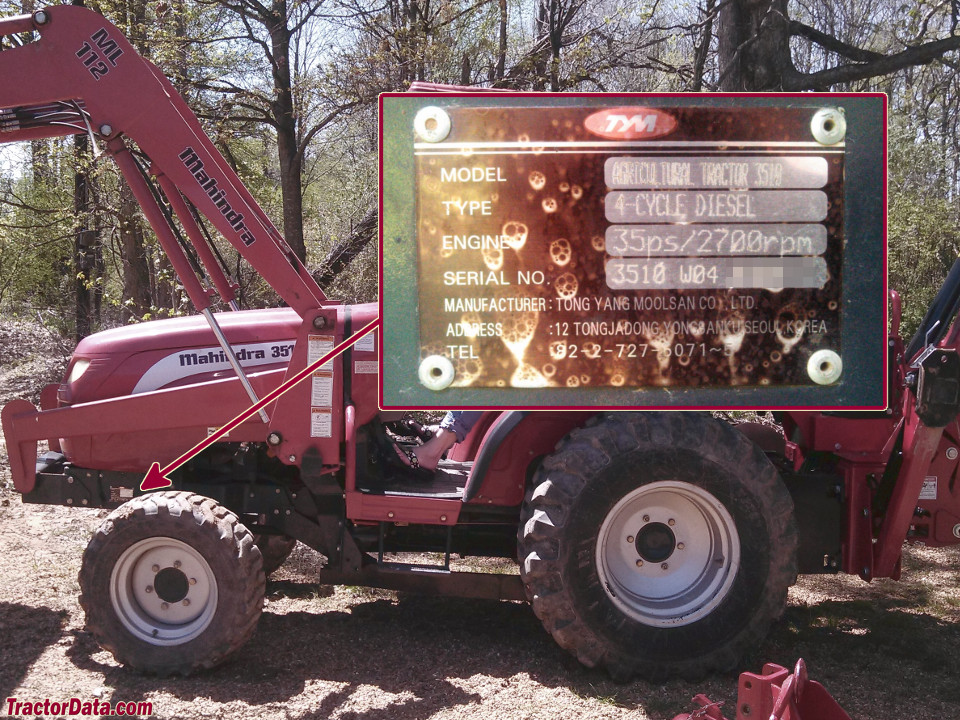

3510 Serial Number Location
Mahindra 3510 serial number location
Serial number on front-left of tractor frame.
Electrical
Groundnegative
Charging systemalternator
Charging amps50
Charging volts12
Battery volts12
Battery AH110
