| | 2002 - 2006 |
| 10 Series | | Compact Utility tractor | | TYM built |
|
Series map:
2310
2810
3510
25.0hp
28.0hp
34.0hp
| Engine Detail |
| Daedong 3A139 |
| diesel |
| 3-cylinder |
| liquid-cooled |
| Displacement | 85 ci
1.4 L
|
| Bore/Stroke | 3.15x3.64 inches
80 x 92 mm
|
| Power | 28 hp
20.9 kW
|
| Fuel system | indirect injection
|
| Compression | 22:1
|
| Rated RPM | 2700
|
| Starter volts | 12
|

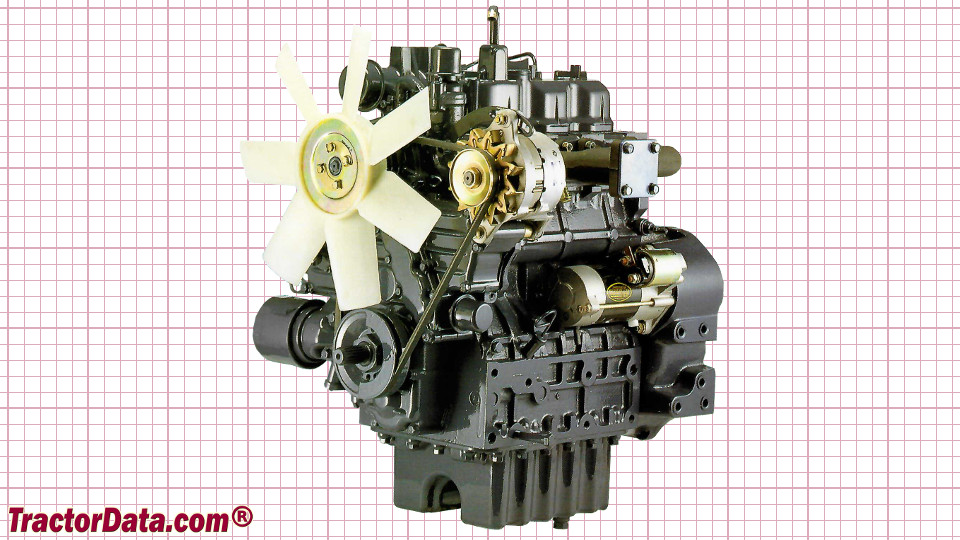

| Mahindra 2810 Engine |
 |
