Belarus 525 Engine


Belarus 525 tractor photo
1983 - 1996
Progress Series
Engine Detail
MTZ D-60
diesel
4-cylinder
liquid-cooled
Displacement290 ci
4.8 L
Bore/Stroke4.33x4.92 inches
110 x 125 mm
Power65 hp
48.5 kW
Air cleaneroil bath
Compression16:1
Rated RPM1800
Torque197 lb-ft
267.1 Nm
Torque RPM1300
Firing order1-3-4-2
Starter volts12
Coolant capacity21 qts
19.9 L
Intake valve clearance0.012 inches
0.305 mm
Exhaust valve clearance0.012 inches
0.305 mm
Engine Oil

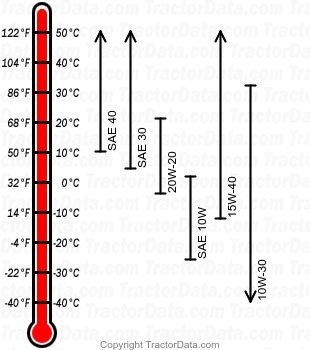

525 diesel engine oil chart
Oil capacity16 qts
15.1 L
