John Deere 3130 Transmission


John Deere 3130 tractor photo
1973 - 1979
Utility tractor
Series map:
3030
3130
69.9kw
72.0kw
Transmission options
12-speed two-speed power shift
6-speed sliding gear
Transmission
TransmissionHi-Lo
Typetwo-speed power shift
Gears12 forward and 6 reverse
Three gears in two ranges, plus reverse range. Two-speed hydraulic high-low shift.
Speeds
With 16.9/14-38 rear tires.

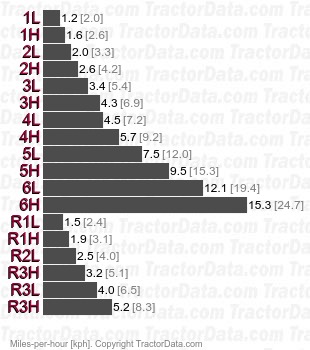

3130 Hi-Lo two-speed power shift speeds
Transmission
Typesliding gear
Gears6 forward and 3 reverse
Three gears in two ranges, plus reverse range.
