John Deere 1830

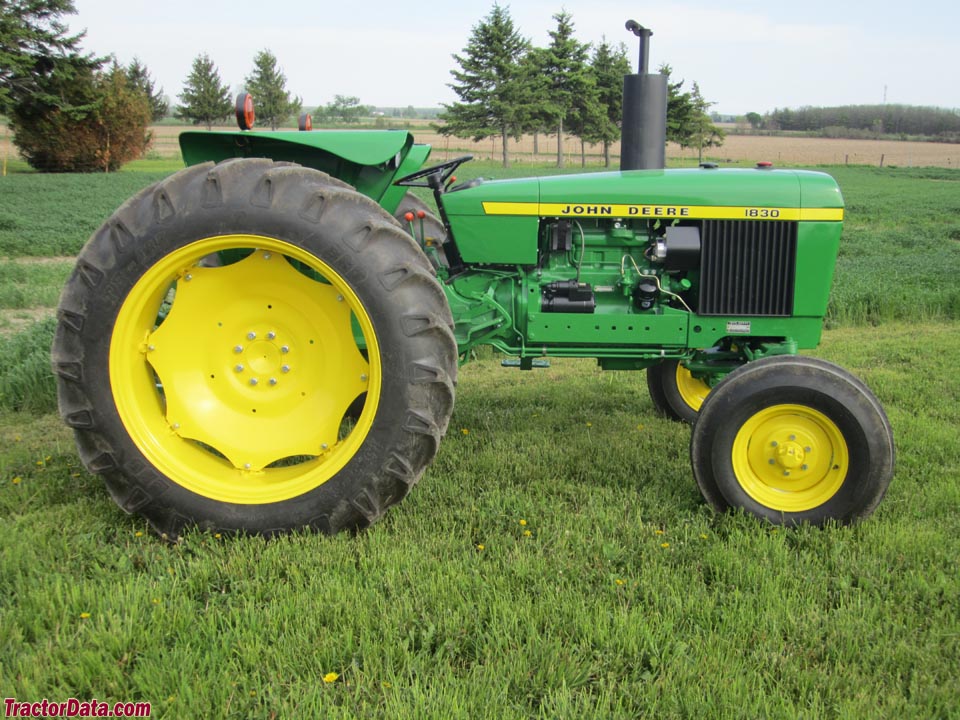

John Deere 1830 tractor photo
1973 - 1979
Utility tractor
Production
ManufacturerJohn Deere
Utility tractor
Built in Mannheim, Baden-Württemberg, Germany
The John Deere model 1830 was the designation for model 2030 tractors built in Mannheim that were exported to Canada. The name change to 1830 was done to avoid confusion with the model 2030 built in Dubuque.
John Deere 1830 Engine
John Deere 3.6L 4-cyl diesel
Fuel tank19.8 gal
74.9 L
Engine details ...
John Deere 1830 Transmissions
8-speed gear
16-speed two-speed power shift
Transmission details ...
John Deere 1830 Power
Engine68 hp
50.7 kW
PTO (claimed)60 hp
44.7 kW
Mechanical
Two- or four-wheel drive
Final drivesplanetary
Differential lockmechanical rear
Power steering
Hydraulic wet disc brakes
Open operator station.
Hydraulics
Typeclosed center
Pressure2250 psi
155.1 bar
Tractor hitch
Rear TypeII/I
Controlposition control and lower-link draft sensing
Rear lift3150 lbs
1428 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type540 (1.375)
 540/1000 (1.375)OptOptional
Engine RPM540@2100
 1000@2100
Dimensions & Tires
2WD Wheelbase85.8 inches
217 cm
4WD Wheelbase84.6 inches
214 cm
Weight5600 lbs
2540 kg
Front tire7.50-16
Rear tire15.5-38
Full dimensions and tires ...
1830 Serial Number Location
John Deere 1830 serial number location
Serial number plate on the right side of the tractor's frame, above the front axle.
Electrical
Groundnegative
Charging systemalternator
Charging amps28
Batteries2
Battery volts12
References
1830 references literature
Operator's Manual 145 Loader (OMW21474)
Tractors 40 to 80 hp published in 1978, by John Deere
