| | 2002 - 2007 |
| 9020 Series | | Agricultural Crawler tractor |
|
Series map:
9320T
9420T
375.0hp
425.0hp
| Transmission options |
| 18-speed full power shift |
| 24-speed partial power shift |

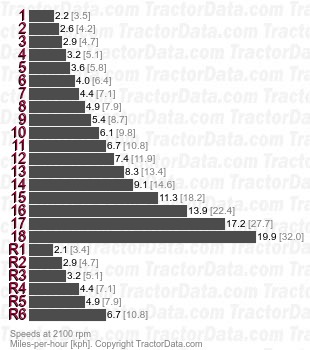

| Transmission |
| Transmission | John Deere PowerShift
|
| Type | full power shift
|
| Gears | 18 forward and 6 reverse
|
| Oil capacity | 240 qts
227.1 L
|
| | 244 qts (with PTO)
230.9 L
|
| Speeds |
|

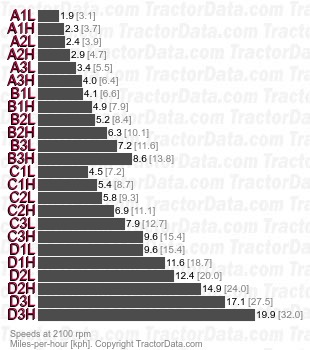

| Transmission |
| Transmission | John Deere PowrSync
|
| Type | partial power shift
|
| Gears | 24 forward and 6 reverse
|
| Oil capacity | 256 qts
242.3 L
|
| | 260 qts (with PTO)
246.1 L
|
| Four synchronized ranges (A-D) with three synchronized gears (1-3) and a high-low power shift. |
| Speeds |
|
