John Deere 9520T Tests


John Deere 9520T tractor photo
2002 - 2007
9020 Series
Agricultural Crawler tractor
Series map:
9420T
9520T
9620T
425.0hp
450.0hp
500.0hp
OCED Tractor Test 1806

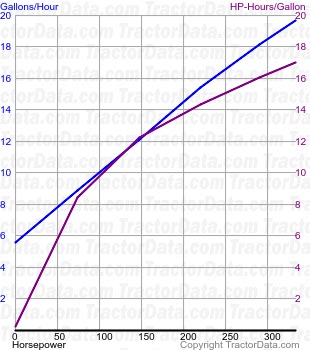

9520T fuel use from test 372
OCED Tractor Test 1806
Diesel 18-speed crawler
April 2 - May 31, 2002
Link: OCED Tractor Test 1806 file
PTO performance
Max power371.54 hp
277.1 kW
Fuel use20.4 gal/hour
77.2 l/hour
Power at rated engine speed333.00 hp
248.3 kW
Fuel use19.6 gal/hour
74.2 l/hour
Power at rated PTO speed357.43 hp
266.5 kW
Fuel use19.4 gal/hour
73.4 l/hour
Drawbar performance
Max power354.72 hp
264.5 kW
Fuel use22.5 gal/hour
85.2 l/hour
Gear 7 used for power test.
Max pull50,817 lbs
23050 kg
Gear 1 used for pull test.
