John Deere 9520T Engine


John Deere 9520T tractor photo
2002 - 2007
9020 Series
Agricultural Crawler tractor
Series map:
9420T
9520T
9620T
425.0hp
450.0hp
500.0hp
Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled
Displacement765 ci
12.5 L
Bore/Stroke5.00x6.50 inches
127 x 165 mm
Power450 hp
335.6 kW
Compression17:1
Rated RPM2100
Starter volts12
Coolant capacity64 qts
60.6 L
Engine Oil

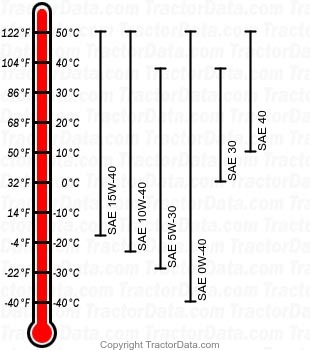

9520T diesel engine oil chart
Oil capacity44 qts
41.6 L
