John Deere 9620T Tests


John Deere 9620T tractor photo
2004 - 2007
9020 Series
Agricultural Crawler tractor
Series map:
9520T
9620T
450.0hp
500.0hp
OCED Tractor Test 1845

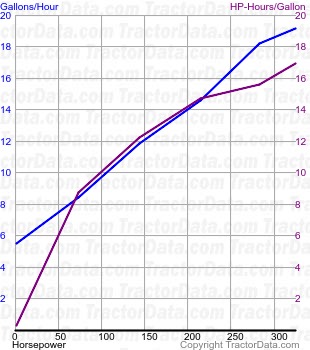

9620T fuel use from test 449
OCED Tractor Test 1845
Diesel 18-speed crawler
November 22 - December 11, 2004
Link: OCED Tractor Test 1845 file
PTO performance
Max power374.40 hp
279.2 kW
Fuel use20.0 gal/hour
75.7 l/hour
Power at rated engine speed324.10 hp
241.7 kW
Fuel use19.1 gal/hour
72.3 l/hour
Power at rated PTO speed363.53 hp
271.1 kW
Fuel use20.2 gal/hour
76.5 l/hour
Drawbar performance
Max power381.79 hp
284.7 kW
Fuel use25.7 gal/hour
97.3 l/hour
Gear 7 used for power test.
Max pull48,991 lbs
22222 kg
Gear 1 used for pull test.
