| | 2002 - 2007 |
| 9020 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
9320
9420
9520
375.0hp
425.0hp
450.0hp
| Transmission options |
| 24-speed partial power shift |
| 18-speed full power shift |
| Transmission |
| Transmission | John Deere PowerSync
|
| Type | partial power shift
|
| Gears | 24 forward and 6 reverse
|
| Oil capacity | 136 qts
128.7 L
|
| | 140 qts (with PTO)
132.5 L
|
| Four ranges (A-D) and three gears (1-3) with high-low power shift. Synchronized shifting between ranges A-B, B-C, and C-D. Gear shifts are synchronized between 1-R, 1-2, and 2-3. Reverse gear does not operate in D range. |
| Speeds |
| With 710/70R42 tires. |
|
| Transmission |
| Transmission | John Deere Powershift
|
| Type | full power shift
|
| Gears | 18 forward and 6 reverse
|
| Oil capacity | 141.6 qts
134.0 L
|
| | 145.6 qts (with PTO)
137.8 L
|

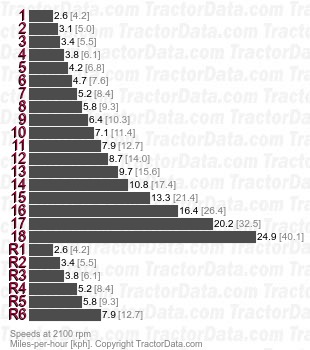

| Speeds |
| With 800/70R38 tires. |
|
