Tractors > John Deere > 9420

John Deere 9420 Engine



John Deere 9420 tractor photo
2002 - 2007
9020 Series
Four-wheel Drive (4WD) tractor
Series map:
9320
9420
9520
375.0hp
425.0hp
450.0hp
Engine Detail
John Deere
turbocharged diesel
6-cylinder
liquid-cooled
Displacement765 ci
12.5 L
Bore/Stroke5.00x6.50 inches
127 x 165 mm
Power425 hp
316.9 kW
Air cleanerdry
Compression17:1
Rated RPM2100
Operating RPM1500-2100
Starter volts12
Coolant capacity64 qts
60.6 L
Engine Oil

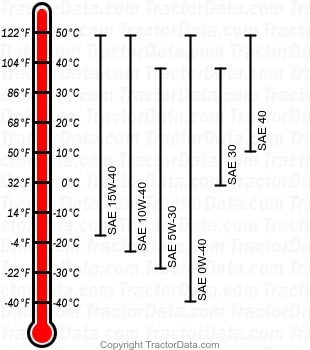

9420 diesel engine oil chart
Oil capacity44 qts
41.6 L
