| | 1968 - 1970 |
| Four-wheel Drive (4WD) tractor | | Wagner built |
|
Series map:
WA-14
WA-17
225.0hp
280.0hp
| Transmission |
| Transmission | Fuller RTO-910
|
| Gears | 10 forward and 2 reverse
|
| Clutch | 355.6mm dry discs
|
| Five forward and one reverse with air-assist hi/lo range selection. Shifting on the move possible by double clutching. |

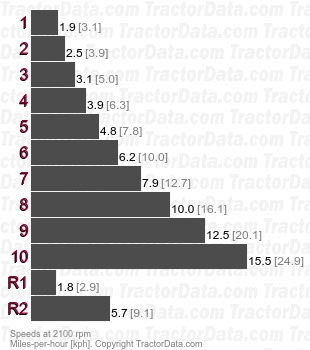

| Speeds |
|
| Shift Pattern |
 |
