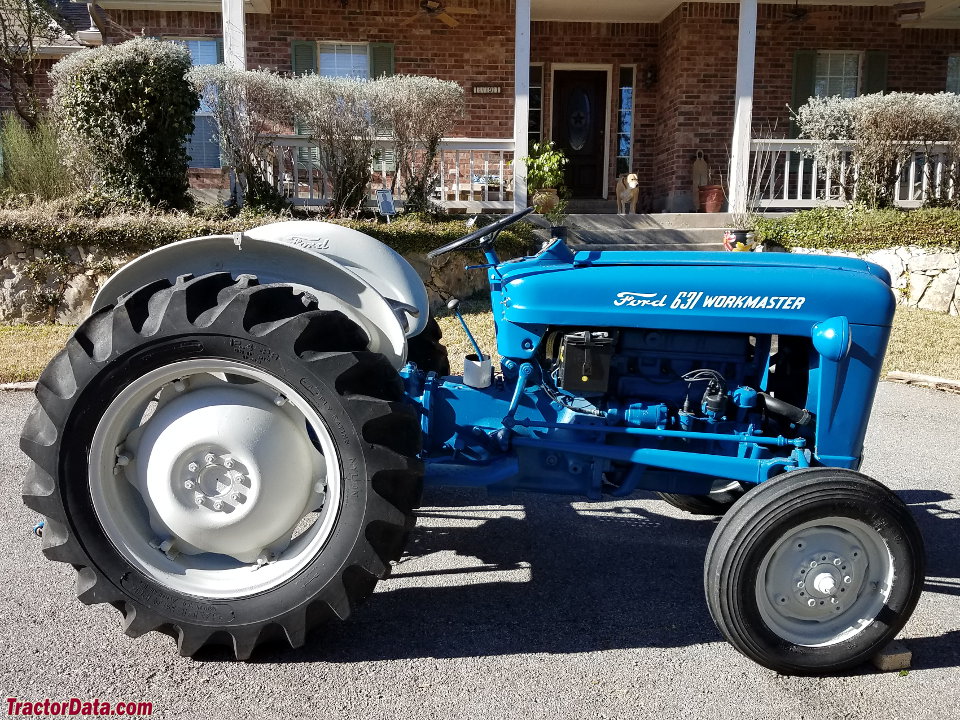

Ford 631
| | 1957 - 1961 |
| 601 Workmaster Series | | Utility tractor |
|
| Production |
| Manufacturer | Ford
|
| Utility tractor |
| Built in Highland Park, Michigan, USA |
| Original price was $3,222 in 1961 |
| Variants |
| 611 | Select-O-Speed, no PTO
|
| 621 | Four-speed, no PTO or 3-point
|
| 631 | Four-speed, no PTO
|
| 641 | Four-speed
|
| 651 | Five-speed
|
| 661 | Five-speed, live PTO
|
| 671 | Select-O-Speed
|
| 681 | Select-O-Speed, dual-speed PTO
|
| Ford 631 Power |
| Engine (gross) | 48.4 hp
36.1 kW
|
| Belt (claimed) | 32 hp
23.9 kW
|
| Plows | 2 *14-inch
|
| Mechanical |
| Two-wheel drive |
| Steering | manual
|
| | power assist optional
|
| Differential mechanical expanding shoe brakes |
| Open operator station. |
| Capacity |
| Fuel | 13 gal
49.2 L
|
| Hydraulic system | 2 gal
7.6 L
|
| Rear axle | 8 qts
7.6 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 2 gal
7.6 L
|
| Total flow | 4 gpm
15.1 lpm
|
| Tractor hitch |
| Rear Type | I
|
| Control | position and draft control
|
| Rear lift | 1250 lbs
567 kg
|

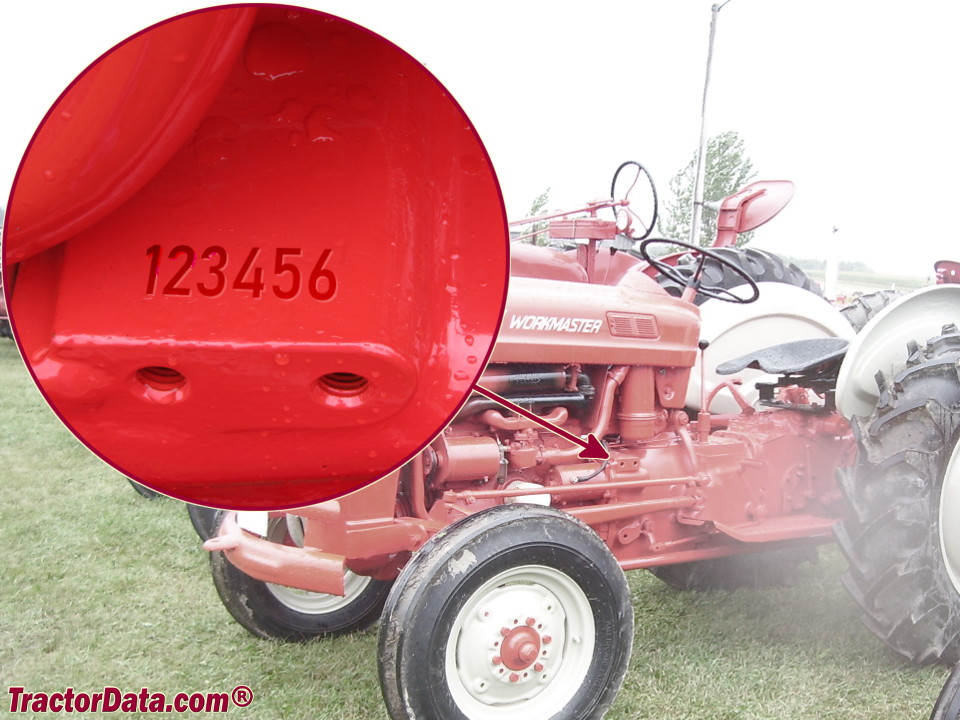

| 631 Serial Number Location |
 |
| Transmission case, top left, behind the starter. |
| Electrical |
| Ground | positive (6V)
|
| | negative (12V)
|
| Charging system | generator
|
| Charging amps | 20
|
| Battery volts | 6 (gas/lp)
|
| | 12 (diesel)
|
| Battery AH | 80 (6V)
|
| | 135 (12V)
|
| References |
 |
| Tractors For Industrial Use published in 1958, by Ford |
| 1955-1960 Tractor Shop Manual (SE-8175) published in 1961 |
| Power Up with Ford published in 1957 |
| Diesel Tractors published in 1959, by Ford |
| New Ford 601 Series Workmaster Tractors published in 1957 |
| New Ford Workmaster Tractors published in 1957 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

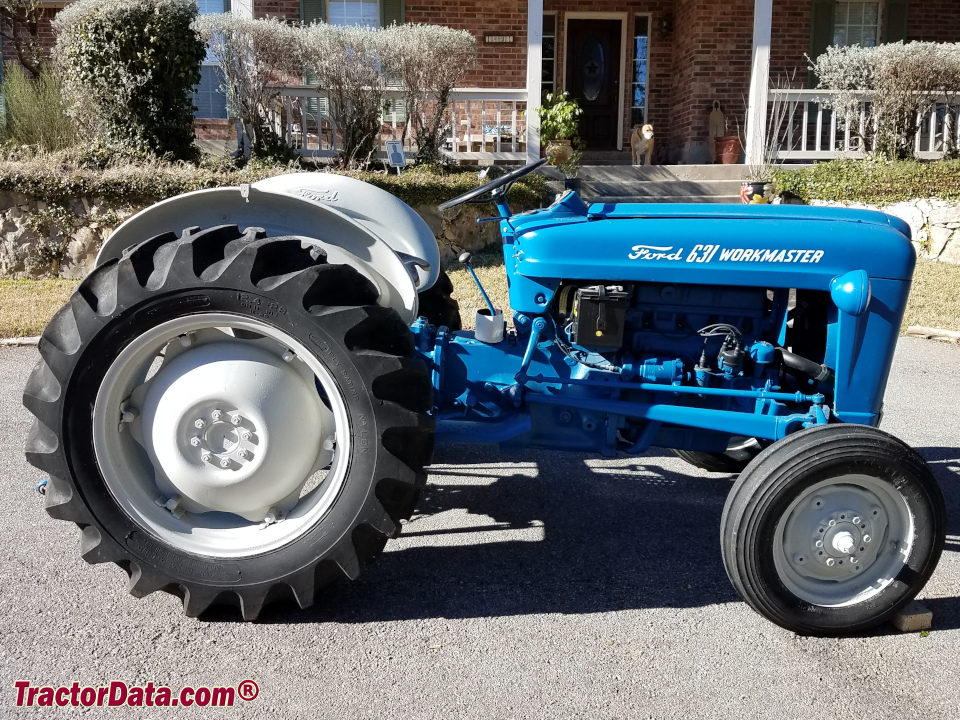

Ford 631 photos...
