Versatile 976 Transmission


Versatile 976 tractor photo
1985 - 1993
6 Series
Four-wheel Drive (4WD) tractor
Series map:
956
976
335.0hp
360.0hp
Transmission options
12-speed constant mesh
12-speed full power shift
Transmission
ManufacturerVersatile
Typeconstant mesh
Gears12 forward and 4 reverse
Clutch394mm dry disc
Oil capacity21.5 qts
20.3 L
Four gears in three ranges, plus reverse range.
Speeds

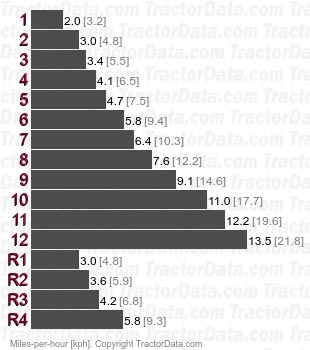

976  constant mesh speeds
Transmission
Typefull power shift
Gears12 forward and 2 reverse
Clutch228mm wet disc
Oil capacity50 qts
47.3 L
Speeds

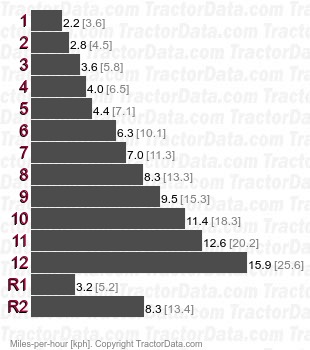

976  full power shift speeds
