Versatile 956

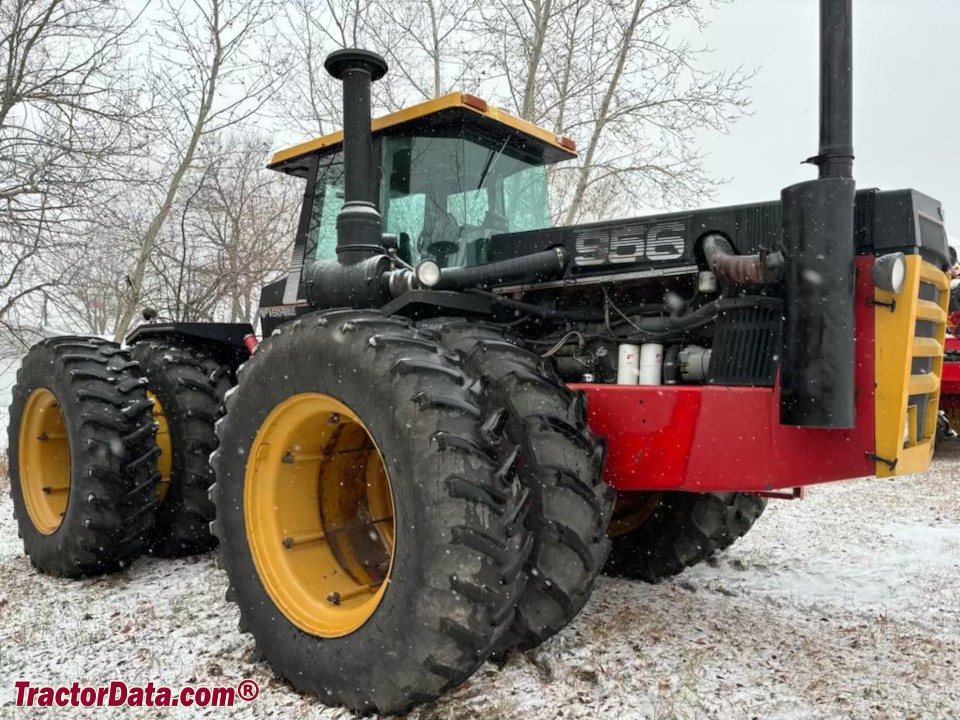

Versatile 956 tractor photo
1985
6 Series
Series map:
936
956
976
310.0hp
335.0hp
360.0hp
Production
ManufacturerVersatile
Built in Winnipeg, Manitoba, Canada
Original price was $97,000 in 1986
Versatile 956 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
Versatile 956 Transmissions
12-speed constant mesh
12-speed full power shift
Transmission details ...
Versatile 956 Power
Engine335 hp
249.8 kW
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Steeringhydraulic power
Hydraulic disc brakes
Cab standard with air-conditioning.
Photos
No photos of the Versatile 956 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel286 gal
1082.5 L
Hydraulic system14.5 gal
54.9 L
Hydraulics
Typeclosed center load sensing
Capacity14.5 gal
54.9 L
Pressure2400 psi
165.5 bar
Valves4 to 4
Pump flow24.5 gpm
92.7 lpm
Steering flow26.1 gpm
98.8 lpm
Steering press.2300 psi
158.6 bar
Tractor hitch
Rear TypeIVN/III
Rear lift (at 24"/610mm)21,700 lbs
9843 kg
Dimensions & Tires
Wheelbase130 inches
330 cm
Weight24,500 lbs
11113 kg
Full dimensions and tires ...
956 Serial Numbers
Location:Serial number plate on the cab door post.
1985956 85 232045
Final956 85 251175

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Batteries4
Battery CCA625
Battery volts12
References
956 references literature
Designation 6 Tractors published in 1984, by Versatile
