Versatile 936

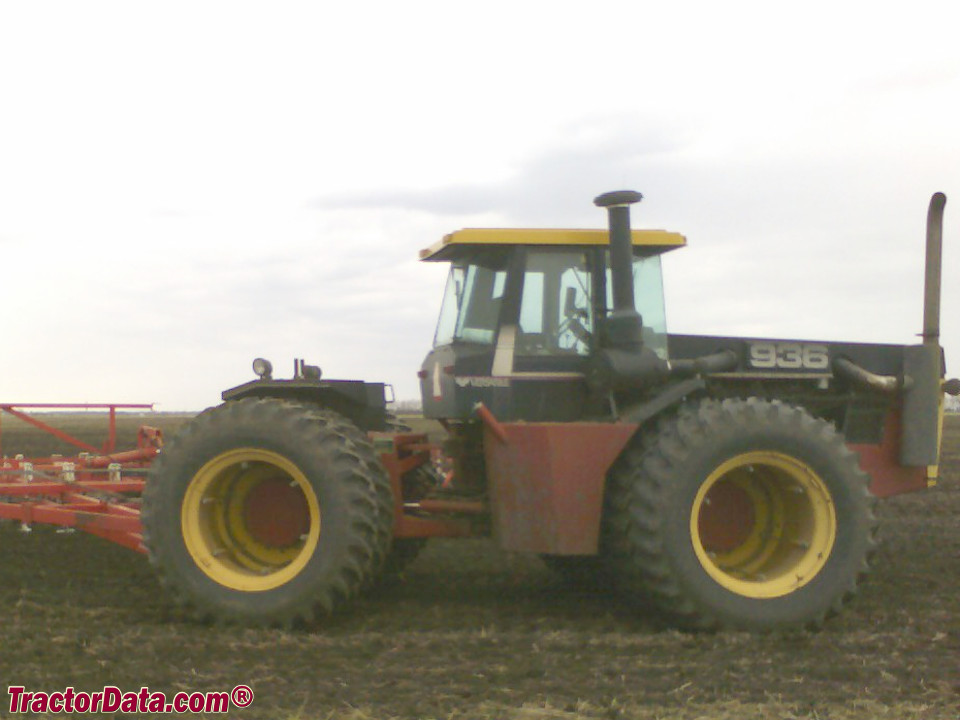

Versatile 936 tractor photo
1985 - 1988
6 Series
Series map:
876
936
Diamond 270
280.0hp
310.0hp
266.0hp
Production
ManufacturerVersatile
Built in Winnipeg, Manitoba, Canada
Original price$91,000 (1988)
Versatile 936 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
Versatile 936 Transmissions
12-speed constant mesh
12-speed full power shift
Transmission details ...
Versatile 936 Power
Engine310 hp
231.2 kW
Drawbar (tested)254.42 hp
189.7 kW
Performance test details ...
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Steeringhydraulic power
Hydraulic disc brakes
Cab standard with air-conditioning.
Capacity
Fuel286 gal
1082.5 L
Hydraulic system14.5 gal
54.9 L
Hydraulics
Typeclosed center load sensing
Capacity14.5 gal
54.9 L
Pressure2400 psi
165.5 bar
Valves4 to 5
Pump flow24.5 gpm
92.7 lpm
Steering flow26.1 gpm
98.8 lpm
Steering press.2300 psi
158.6 bar
Tractor hitch
Rear TypeIVN/III
Rear lift (at 24"/610mm)21,700 lbs
9843 kg
Dimensions & Tires
Wheelbase130 inches
330 cm
Weight26,950 lbs
12224 kg
Full dimensions and tires ...
936 Serial Numbers
Location:Serial number plate on the cab door post.
1985936 85 227040
1986936 86 270100
1987936 97 ------
1988936 88 330170
Final936 88 331654

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps90
Batteries4
Battery CCA625
Battery volts12
References
936 references literature
Designation 6 Tractors published in 1984, by Versatile
936 and 976 - Designation 6 Tractors published in 1987, by Versatile
