Tractors > Versatile > 900 Series II

Versatile 900 Series II Engine



Versatile 900 Series II tractor photo
1972 - 1977
Model year
2 Series
Four-wheel Drive (4WD) tractor
Series map:
850
900
950
280.0hp
295.0hp
348.0hp
Engine Detail
Cummins V-903-C295
diesel
8-cylinder
liquid-cooled V8
Displacement903 ci
14.8 L
Bore/Stroke5.50x4.75 inches
140 x 121 mm
Power295 hp
220.0 kW
Air cleanerdual dry element
Pre-heatingether injection
Compression16.5:1
Rated RPM2400
Idle RPM1000-2640
Torque706 lb-ft
957.3 Nm
Torque RPM1800
Starter volts12
Coolant capacity53 qts
50.2 L
Engine Oil

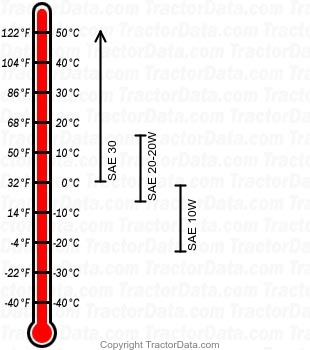

900 Series II diesel engine oil chart
Oil capacity34 qts
32.2 L
