Versatile 895 Engine


Versatile 895 tractor photo
1980 - 1984
3 Series
Four-wheel Drive (4WD) tractor
Series map:
875
895
945
280.0hp
310.0hp
335.0hp
Engine Detail
Cummins NTA-855-A310
aftercooled turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power310 hp
231.2 kW
Air cleanerdual dry element with precleaner
Compression14.1:1
Rated RPM2100
Idle RPM1000-2300
Torque980 lb-ft
1328.9 Nm
Torque RPM1400
Starterelectric
Starter volts12
Coolant capacity61 qts
57.7 L
Engine Oil

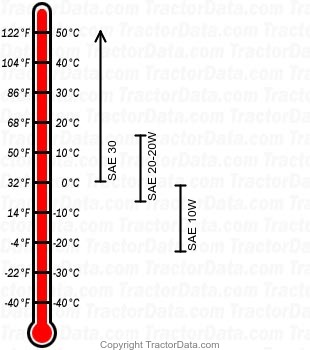

895 diesel engine oil chart
Oil capacity35 qts
33.1 L
