Versatile 875
| | 1978 - 1984 |
| 3 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
835
875
895
230.0hp
280.0hp
310.0hp
| Production |
| Manufacturer | Versatile
|
| Four-wheel Drive (4WD) tractor |
| Built in Winnipeg, Manitoba, Canada |
| Original price was $110,000 in 1984 |
| Versatile 875 Power |
| Engine | 280 hp
208.8 kW
|
| Drawbar (claimed) | 252 hp
187.9 kW
|
| Drawbar (tested) | 224.08 hp
167.1 kW
|
| PTO (tested) | 252.67 hp
188.4 kW
|
 Performance test details ... |
| Mechanical |
| Four-wheel drive |
| Final drives | outboard planetary
|
| Articulated power steering |
| Hydraulic disc brakes |
| Cab with air-conditioning. |
| Capacity |
| Fuel | 185 gal
700.2 L
|
| Hydraulic system | 21 gal
79.5 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 21 gal
79.5 L
|
| Pressure | 2250 psi
155.1 bar
|
| Valves | 4
|
| Pump flow | 23.6 gpm
89.3 lpm
|
| Steering flow | 26.1 gpm
98.8 lpm
|
| Tractor hitch |
| Rear Type | III OptOptional
|
| Control | position and depth control
|
| Rear lift (at ends) | 18270 lbs
8287 kg
|
| Rear lift (at 24"/610mm) | 12370 lbs
5611 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 1000
|
| 875 Serial Numbers |
| Location: | Serial number plate on the cab door post.
|
| 1978 | 875 78 052501
|
| 1979 | 875 79 053201
|
| 1980 | 875 80 054301
|
| 1981 | 875 81 055501
|
| 1982 | 875 82 056601
|
| 1983 | 875 83 057801
|
| 1984 | 875 84 059025
|
| Final | 875 84 059617
|
FAQ: How to read a serial number table.
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 75
|
| Batteries | 2
|
| Battery CCA | 900
|
| Battery volts | 12
|
| Battery Group | 80
|

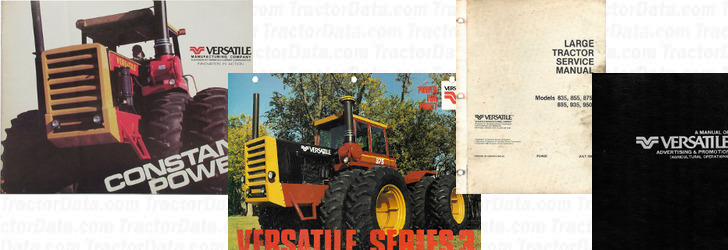

| References |
 |
| Constant Power published in 1979, by Versatile |
| Series 3 published in 1983, by Versatile |
| Large Tractor Service Manual (PU4020) published in 1980 |
| Agricultural Operations Sales Manual published in 1983, by Versatile |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 27, 2023 |
