Versatile 875 Engine


Versatile 875 tractor photo
1978 - 1984
3 Series
Four-wheel Drive (4WD) tractor
Series map:
835
875
895
230.0hp
280.0hp
310.0hp
Engine Detail
Cummins NT-855-A280
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power280 hp
208.8 kW
Air cleanerdual dry element with precleaner
Compression14.1:1
Rated RPM2100
Idle RPM1000-2300
Torque920 lb-ft
1247.5 Nm
Torque RPM1400
Starterelectric
Starter volts12
Coolant capacity47 qts
44.5 L
Engine Oil

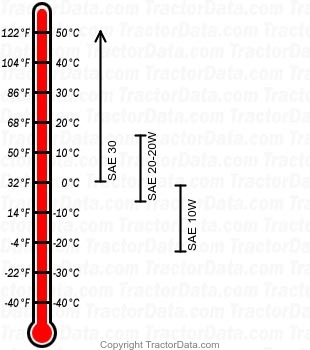

875 diesel engine oil chart
Oil capacity35 qts
33.1 L
