| | 1985 - 1986 |
| 6 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
836
856
210.0hp
240.0hp
| Transmission options |
| 12-speed constant mesh |
| 15-speed partially synchronized |
| 12-speed full power shift |
| Transmission |
| Transmission | Versatile
|
| Type | constant mesh
|
| Gears | 12 forward and 4 reverse
|
| Oil capacity | 21.5 qts
20.3 L
|
| Transmission |
| Transmission | Versatile Three-by-Five
|
| Type | partially synchronized
|
| Gears | 15 forward and 5 reverse
|
| Clutch | 228mm hydraulic wet disc
|
| Oil capacity | 25 qts
23.7 L
|
| Transmission |
| Type | full power shift
|
| Gears | 12 forward and 3 reverse
|
| Oil capacity | 18 qts
17.0 L
|

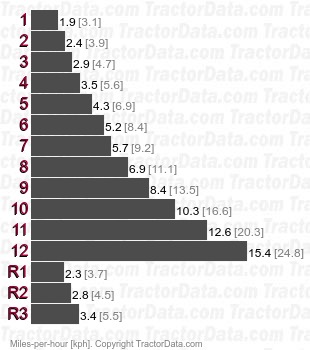

| Speeds |
|
