Versatile 836 Tests


Versatile 836 tractor photo
1985 - 1986
6 Series
Four-wheel Drive (4WD) tractor
Series map:
836
856
210.0hp
240.0hp
Tractor Tests
NTTL 1566: diesel 15-speed 4WD
NTTL 1567: diesel power shift 4WD
Nebraska Tractor Test 1566

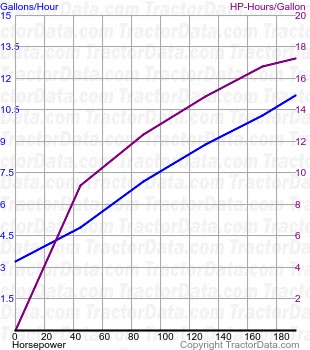

836 fuel use from test 1566
Nebraska Tractor Test 1566
Diesel 15-speed 4WD
May 16 - 28, 1985
Link: Nebraska Tractor Test 1566 file
PTO performance
Power at rated engine speed192.54 hp
143.6 kW
Fuel use10.9 gal/hour
41.3 l/hour
Drawbar performance
Max power166.62 hp
124.2 kW
Fuel use10.7 gal/hour
40.5 l/hour
Gear 2-4 used for power test.
Max pull24,123 lbs
10942 kg
Gear 1-3 used for pull test.
Nebraska Tractor Test 1567
Diesel power shift 4WD
May 7 - 31, 1985
Link: Nebraska Tractor Test 1567 file
PTO performance
Power at rated engine speed181.04 hp
135.0 kW
Fuel use10.9 gal/hour
41.3 l/hour
Drawbar performance
Max power158.31 hp
118.1 kW
Fuel use10.7 gal/hour
40.5 l/hour
Gear 7 used for power test.
Max pull24,723 lbs
11214 kg
Gear 2 used for pull test.
