Tractors > Versatile > 835

Versatile 835

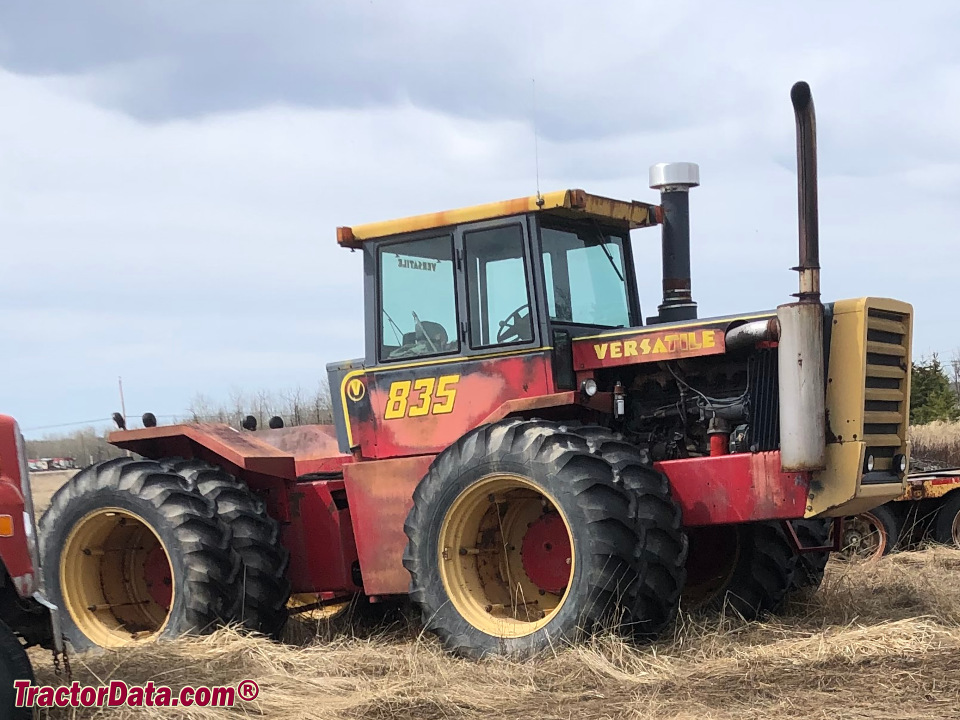

Versatile 835 tractor photo
1978 - 1984
3 Series
Four-wheel Drive (4WD) tractor
Series map:
835
875
230.0hp
280.0hp
Production
ManufacturerVersatile
Four-wheel Drive (4WD) tractor
Built in Winnipeg, Manitoba, Canada
Original price was $94,000 in 1984
Versatile 835 Engine
Cummins 14.0L 6-cyl diesel
Engine details ...
Versatile 835 Transmission
12-speed gear
Transmission details ...
Versatile 835 Power
Engine230 hp
171.5 kW
PTO (claimed)198 hp
147.6 kW
Mechanical
Four-wheel drive
Final drivesoutboard planetary
Articulated power steering
Hydraulic disc brakes
Cab with air-conditioning.
Photos
No photos of the Versatile 835 are currently available. To submit yours, email it to Peter@TractorData.com. Photos may only be used with the permission of the original photographer.
Capacity
Fuel185 gal
700.2 L
Hydraulic system21 gal
79.5 L
Hydraulics
Typeopen center
Capacity21 gal
79.5 L
Pressure2250 psi
155.1 bar
Valves4
Pump flow23.6 gpm
89.3 lpm
Steering flow26.1 gpm
98.8 lpm
Tractor hitch
Rear TypeIII OptOptional
Controlposition and depth control
Rear lift (at ends)18270 lbs
8287 kg
Rear lift (at 24"/610mm)12370 lbs
5611 kg
Power Take-off (PTO)
Rear PTOindependent
Rear PTO Type1000
Dimensions & Tires
Wheelbase130 inches
330 cm
Weight20,000 lbs
9072 kg
Front tire20.8x38
Rear tire20.8x38
Full dimensions and tires ...
835 Serial Numbers
Location:Serial number plate on the cab door post.
1978835 78 033000
1979835 79 033601
1980835 80 034201
1981835 81 035001
1982835 82 035602
1983835 83 000001
1984835 84 037575
Final835 84 038075

FAQ: How to read a serial number table.
Electrical
Groundnegative
Charging systemalternator
Charging amps75
Batteries2
Battery CCA900
Battery volts12
Battery Group80
References
835 references literature
Constant Power published in 1979, by Versatile
Series 3 published in 1983, by Versatile
Large Tractor Service Manual (PU4020) published in 1980
Agricultural Operations Sales Manual published in 1983, by Versatile
