Versatile 835 Engine


Versatile 835 tractor photo
1978 - 1984
3 Series
Four-wheel Drive (4WD) tractor
Series map:
835
875
230.0hp
280.0hp
Engine Detail
Cummins NT-855-A230
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power230 hp
171.5 kW
Air cleanerdual dry element with precleaner
Compression14.1:1
Rated RPM2100
Idle RPM1000-2400
Torque800 lb-ft
1084.8 Nm
Torque RPM1400
Starterelectric
Starter volts12
Coolant capacity46 qts
43.5 L
Engine Oil

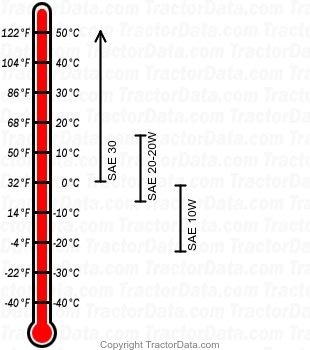

835 diesel engine oil chart
Oil capacity35 qts
33.1 L
