Tractors > Versatile > 825

Versatile 825 Engine



Versatile 825 tractor photo
1977
2 Series
Four-wheel Drive (4WD) tractor
Series map:
800
825
850
235.0hp
250.0hp
280.0hp
Engine Detail
Cummins NT-855-C250
turbocharged diesel
6-cylinder
liquid-cooled inline
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power250 hp
186.4 kW
Air cleanerdual dry element
Pre-heatingether injection
Compression15.8:1
Rated RPM2100
Idle RPM1000-2300
Torque750 lb-ft
1017.0 Nm
Torque RPM1500
Starter volts12
Coolant capacity49 qts
46.4 L
Engine Oil

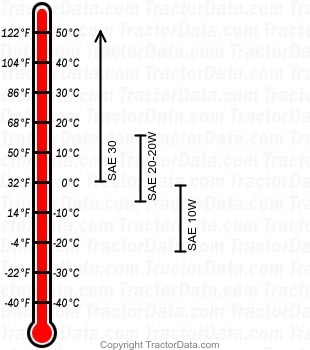

825 diesel engine oil chart
Oil capacity41 qts
38.8 L
