| | 1973 - 1977 |
|
| 2 Series | | Four-wheel Drive (4WD) tractor |
|
Series map:
750
800
825
220.0hp
235.0hp
250.0hp
| Transmission |
| Type | gear
|
| Gears | 12 forward and 4 reverse
|
| Clutch | 355.6mm ceramic disc
|
| Oil capacity | 21.5 qts
20.3 L
|
| Three gears, plus reverse, in four ranges. |

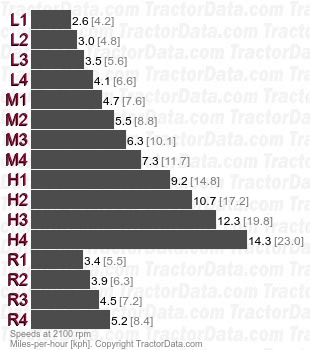

| Speeds |
| With 24.5x32 rear tires. |
|
