Tractors > Versatile > 800 Series II

Versatile 800 Series II Engine



Versatile 800 Series II tractor photo
1973 - 1977
Model year
2 Series
Four-wheel Drive (4WD) tractor
Series map:
750
800
825
220.0hp
235.0hp
250.0hp
Engine Detail
Cummins N-855-C235
diesel
6-cylinder
liquid-cooled inline
Displacement855 ci
14.0 L
Bore/Stroke5.50x6.00 inches
140 x 152 mm
Power235 hp
175.2 kW
Air cleanerdual dry element
Pre-heatingether injection
Compression15.8:1
Rated RPM2100
Idle RPM1000-2300
Torque660 lb-ft
895.0 Nm
Torque RPM1500
Starter volts12
Coolant capacity49 qts
46.4 L
Engine Oil

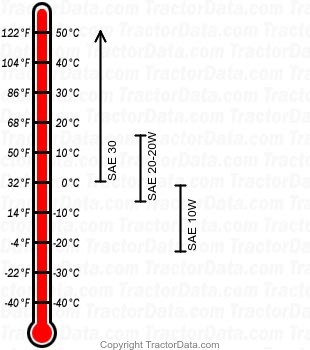

800 Series II diesel engine oil chart
Oil capacity41 qts
38.8 L
