| | 1984 - 1993 |
| M50 Series | | Utility tractor |
|
Series map:
M7950
M8950
81.0hp
96.0hp
| Transmission |
| Type | partial power shift
|
| Gears | 24 forward and 8 reverse
|
| Oil capacity | 59.2 qts
56.0 L
|
| Four gears (1-4) in three ranges (A-C, plus reverse) with high-low power shift. Synchronized shifting within range. |

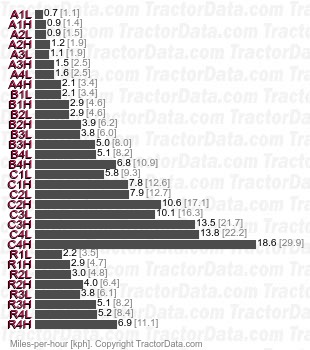

| Speeds |
| With 18.4-34 rear tires. |
|
| Shift Pattern |
 |
