Kubota M6950
| | 1983 - 1993 |
| M50 Series | | Utility tractor |
|
| Production |
| Manufacturer | Kubota
|
| Utility tractor |
| Built in Japan |
| Variants |
| M6950F | 2WD
|
| M6950DT | 4WD
|
| Kubota M6950 Power |
| Engine (net) | 71 hp
52.9 kW
|
| PTO (claimed) | 66 hp
49.2 kW
|
| Drawbar (tested) | 55.16 hp
41.1 kW
|
| PTO (tested) | 66.44 hp
49.5 kW
|
 Performance test details ... |
| Mechanical |
| Two- or four-wheel drive |
| Differential lock | mechanical rear
|
| Power steering |
| Hydraulic wet disc brakes |
| Four-post ROPS. Cab optional with air-conditioning. |
| Capacity |
| Fuel | 26.4 gal
99.9 L
|
| Hydraulic system | 13.2 gal
50.0 L
|
| Hydraulics |
| Type | open center
|
| Capacity | 13.2 gal
50.0 L
|
| Pressure | 2630 psi
181.3 bar
|
| Valves | 1 or 2
|
| Total flow | 11 gpm
41.6 lpm
|
| Tractor hitch |
| Rear Type | II
|
| Rear lift (at ends) | 4848 lbs
2199 kg
|
| Rear lift (at 24"/610mm) | 4475 lbs
2029 kg
|
| Power Take-off (PTO) |
| Rear PTO | independent
|
| Rear PTO Type | 540/1000
|
| Engine RPM | 540@2035
|
| | 1000@2389
|
| Electrical |
| Ground | negative
|
| Charging system | alternator
|
| Charging amps | 65 (with cab)
|
| Battery volts | 12
|
| Battery AH | 300
|
| References |
 |
| Front Loaders published in 1988, by Kubota |
| Front Loaders B, L and M-Series published in 1994, by Kubota* |
| Product Catalog published in 1990, by Kubota |
| M-Series published in 1985, by Kubota |
| *Publication contains known errors. |
| Page information |
 |
| Copyright 2024 TractorData.com® |
| TractorData is a family-owned small business located in Minnesota that has been providing reference information on tractors since 1999. |
| Peter Easterlund - owner/author |
| Email: Peter@TractorData.com |
| Updated on January 24, 2023 |
©2000-2024 - TractorData.com®. Notice: Every attempt is made to ensure the data listed
is accurate. However, differences between sources, incomplete listings,
errors, and data entry mistakes do occur.
Consult official
literature from the manufacturer before attempting any service or repair.
Engine details ...
Transmission details ...

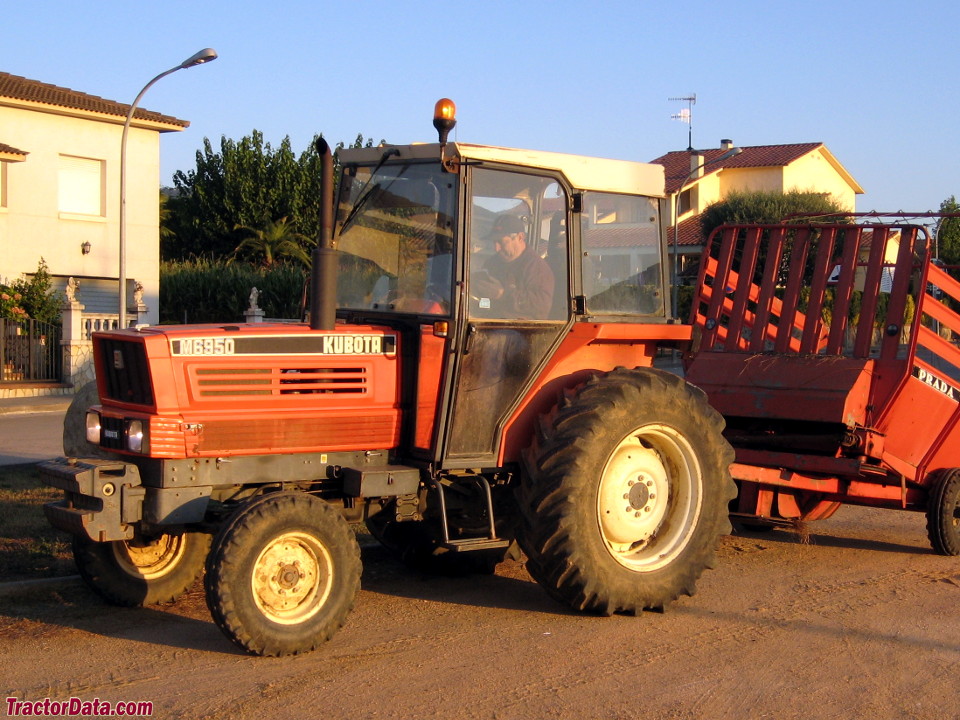

Kubota M6950 photos...
