| | 1995 - 1997 |
| M Series | | Utility tractor |
|
Series map:
M4700
M5400
51.0hp
58.0hp
| Transmission options |
| 8-speed partially synchronized |
| 12-speed creeper |
| Transmission |
| Type | partially synchronized
|
| Gears | 8 forward and 4 reverse
|
| Clutch | dry disc
|
| Oil capacity | 42.3 qts
40.0 L
|
| Oil type |
|
| Four gears (1-4) in two ranges (low/high) plus reverse range. Synchronized shifting between gears 3 and 4. |

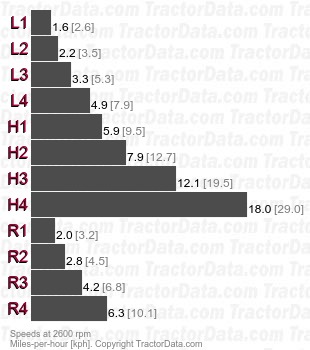

| Speeds |
| With 14.9-28 rear tires. |
|
| Transmission |
| Type | creeper
|
| Gears | 12 forward and 4 reverse
|

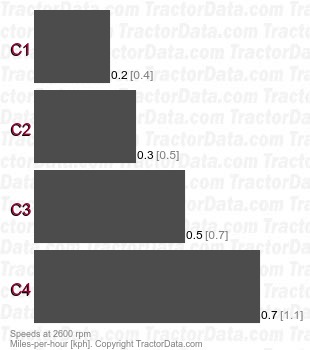

| Speeds |
| With 14.9-28 rear tires. |
|
