Tractors > Kubota > M4700

Kubota M4700 Engine



Kubota M4700 tractor photo
1995 - 1997
M Series
Utility tractor
Series map:
M4700
M5400
51.0hp
58.0hp
Engine Detail
Kubota F2803
diesel
5-cylinder
liquid-cooled
Displacement167.6 ci
2.7 L
Bore/Stroke3.43x3.64 inches
87 x 92 mm
Power (net)47 hp
35.0 kW
Power (gross)51 hp
38.0 kW
Rated RPM2600
Torque116.5 lb-ft
158.0 Nm
Torque RPM1600
Starter volts12
Coolant capacity6.6 qts
6.2 L
Engine Oil

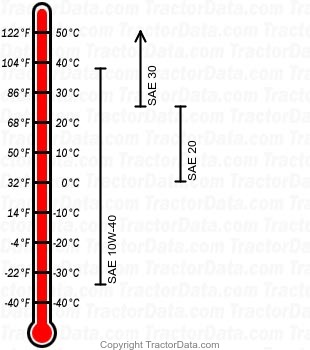

M4700 diesel engine oil chart
Oil capacity8.5 qts
8.0 L
Oil change100 h
