| | 1994 - 1999 |
| Grand L Series | | Compact Utility tractor |
|
Series map:
L3600
L4200
38.5hp
45.3hp
| Transmission options |
| 8-speed synchronized shuttle |
| 8-speed power shuttle |
| Transmission |
| Transmission | FST
|
| Type | synchronized shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|
| Oil capacity | 41.2 qts
39.0 L
|
| Four gears (1-4) in two ranges (low/high) with left-hand shuttle lever. Gear shifts (1-4) are synchronized using the foot clutch. Shuttle shifting is also synchronized using the clutch. The tractor must be stopped, and clutch used, to shift ranges. |

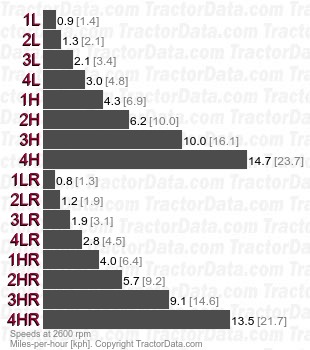

| Speeds |
| With 14.9-24 rear tires. |
|
| Shift Pattern |
 |
| Transmission |
| Transmission | Glide Shift (GST)
|
| Type | power shuttle
|
| Gears | 8 forward and reverse
|
| Clutch | dry disc
|
| Oil capacity | 41.2 qts
39.0 L
|
| Eight-speed gear shift (1-8) with left-hand shuttle lever. Power shuttle shifting without need for the clutch. The transmission can be shifted (without the clutch) by sequentially shifting up through the gears. |

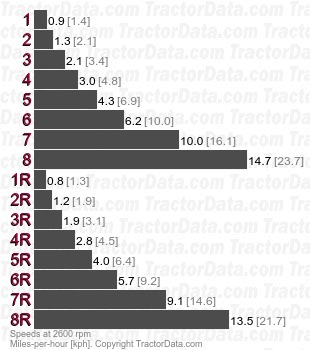

| Speeds |
| With 14.9-24 rear tires. |
|
| Shift Pattern |
 |
