Tractors > Kubota > L4200

Kubota L4200 Engine



Kubota L4200 tractor photo
1994 - 1999
Grand L Series
Compact Utility tractor
Series map:
L3600
L4200
38.5hp
45.3hp
Engine Detail
Kubota V2203
diesel
4-cylinder
liquid-cooled
Displacement134.1 ci
2.2 L
Bore/Stroke3.4x3.6 inches
86 x 91 mm
Power (net)42 hp
31.3 kW
Power (gross)45.3 hp
33.8 kW
Fuel systemindirect injection
Rated RPM2600
Torque102.9 lb-ft
139.5 Nm
Starter volts12
Coolant capacity7.9 qts
7.5 L
Engine Oil

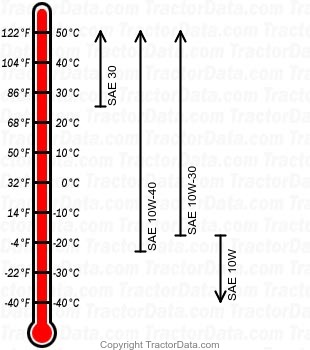

L4200 diesel engine oil chart
Oil capacity6.3 qts
6.0 L
Oil change100 h
